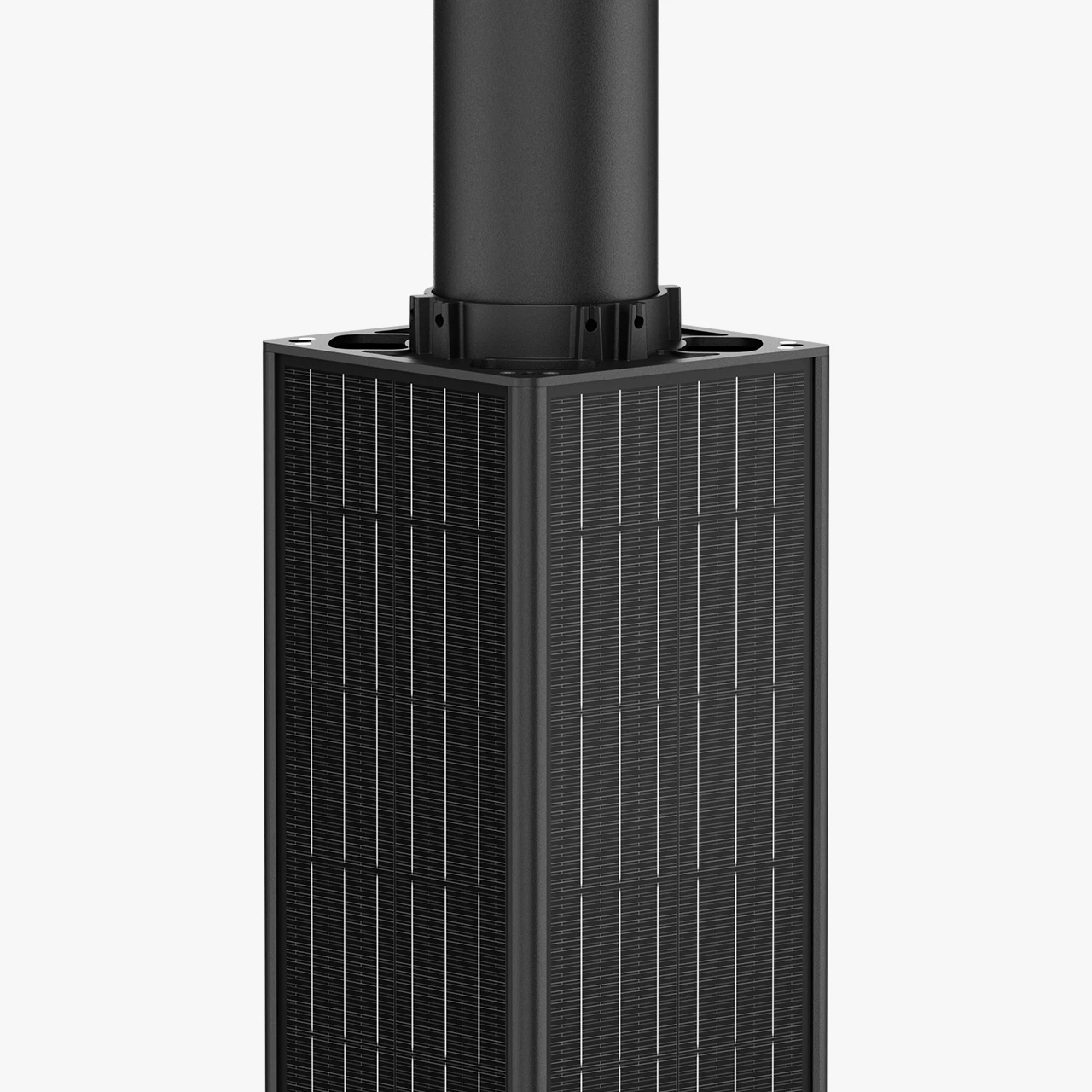

Square I Vertical Solar Panel

Model Number
SQ140
SQ220
P.max
140W
220W
Vmp
Imp
Dimension
1400*220*220mm
2000*220*220mm
high_end_square_pv_module
multiple_pole_height_option_solar_module
anti_snow_dust_wind_square_pv_module
top_vertical_square_solar_module_manufacturer
separate_square_pv_module_for_commercial_projects
high_end_square_pv_module
multiple_pole_height_option_solar_module
anti_snow_dust_wind_square_pv_module
top_vertical_square_solar_module_manufacturer
separate_square_pv_module_for_commercial_projects

Square I Vertical Solar Panel

Model Number
SQ140
SQ220
P.max
140W
220W
Vmp
Imp
Dimension
1400*220*220mm
2000*220*220mm
Send inquiry
More info

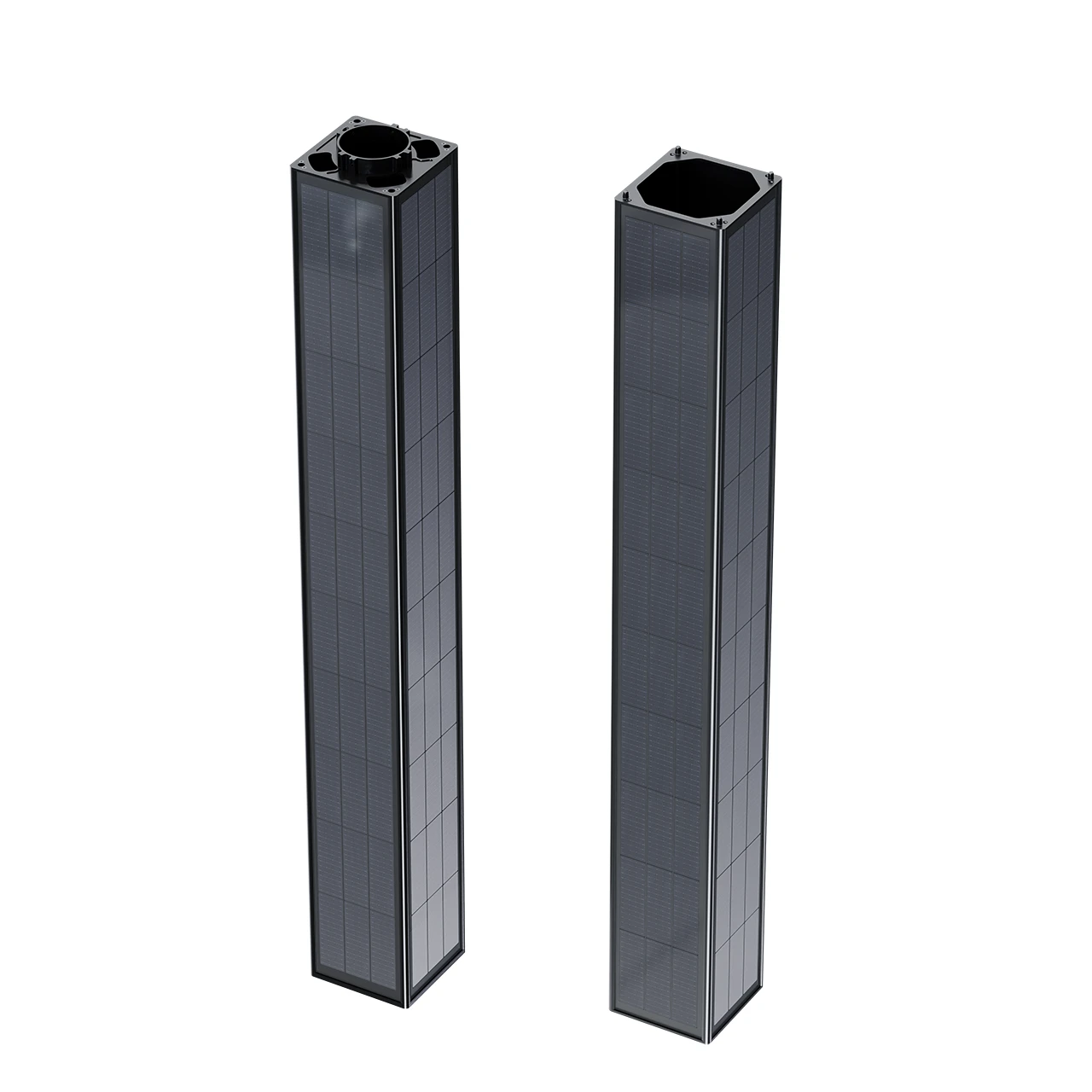

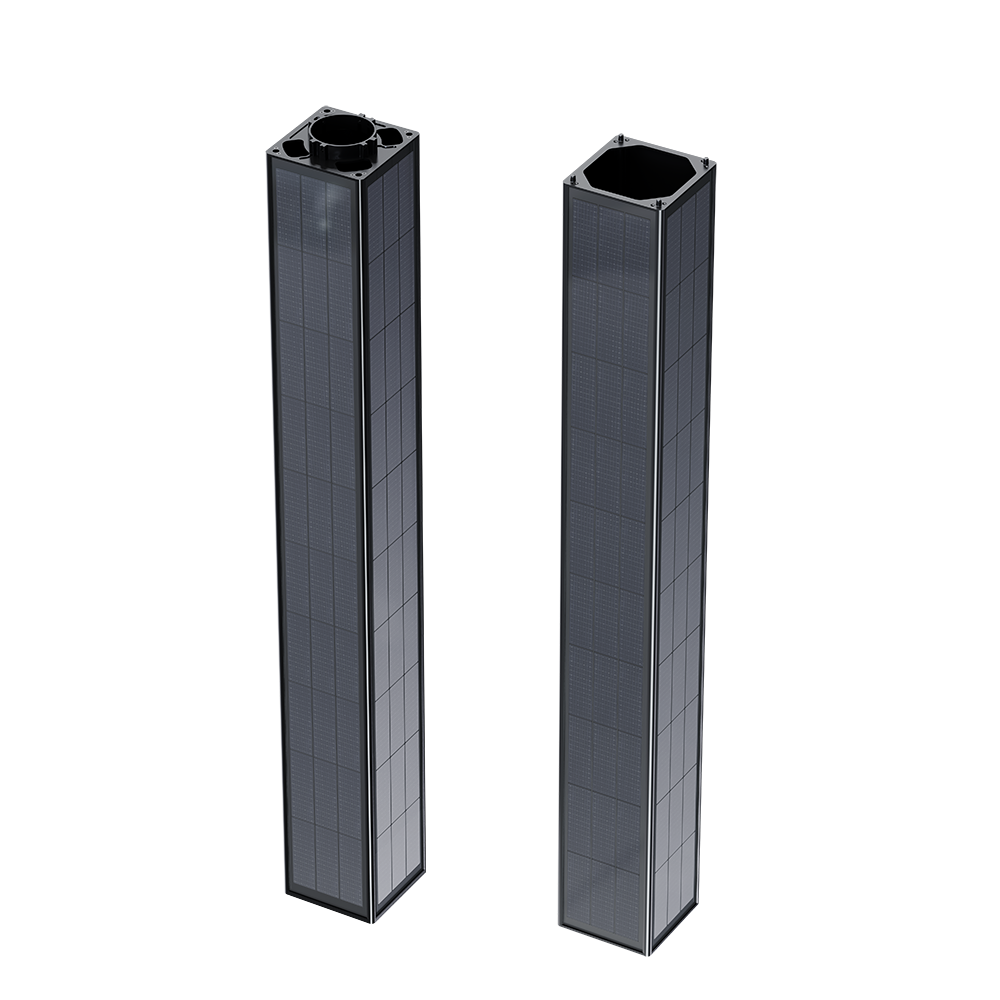

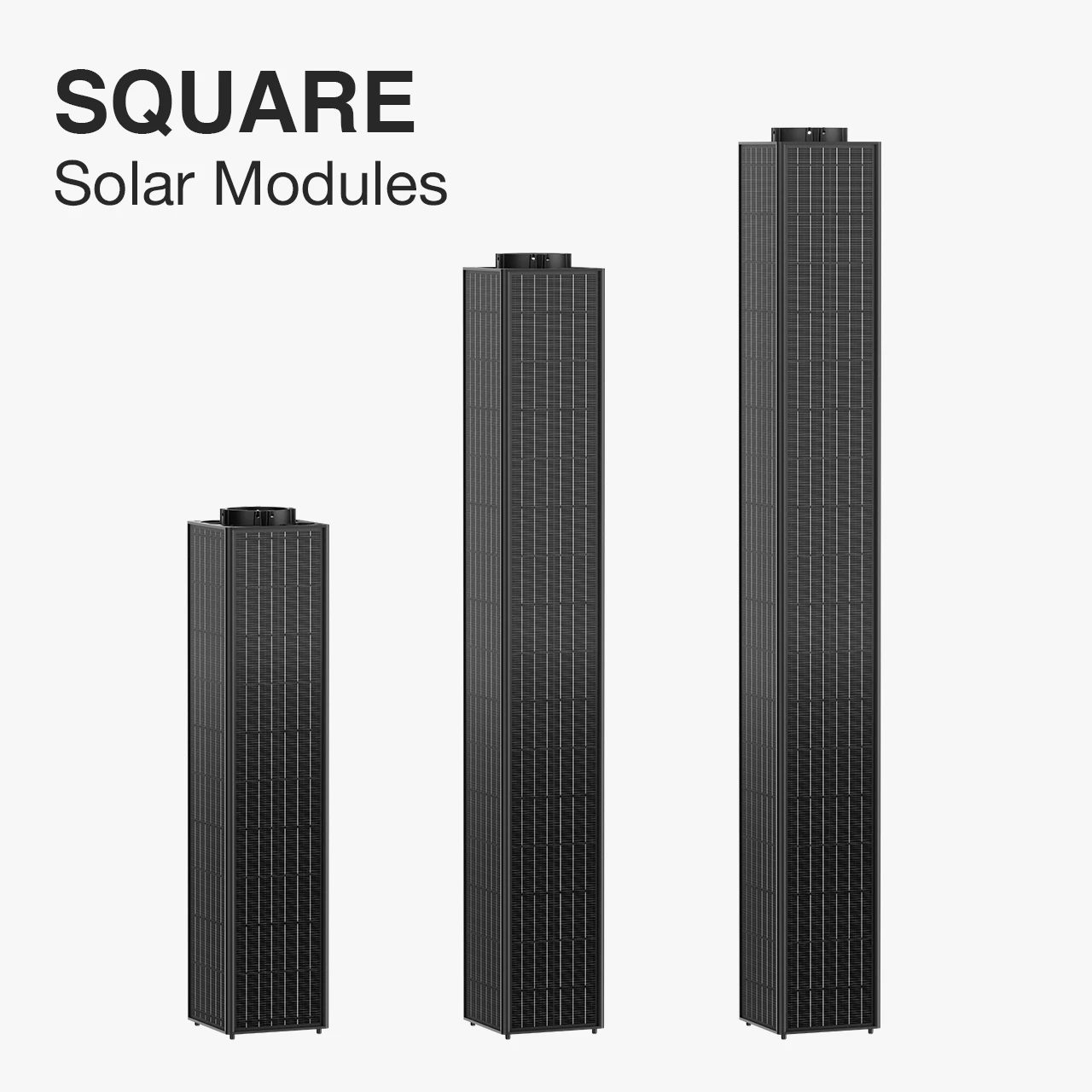

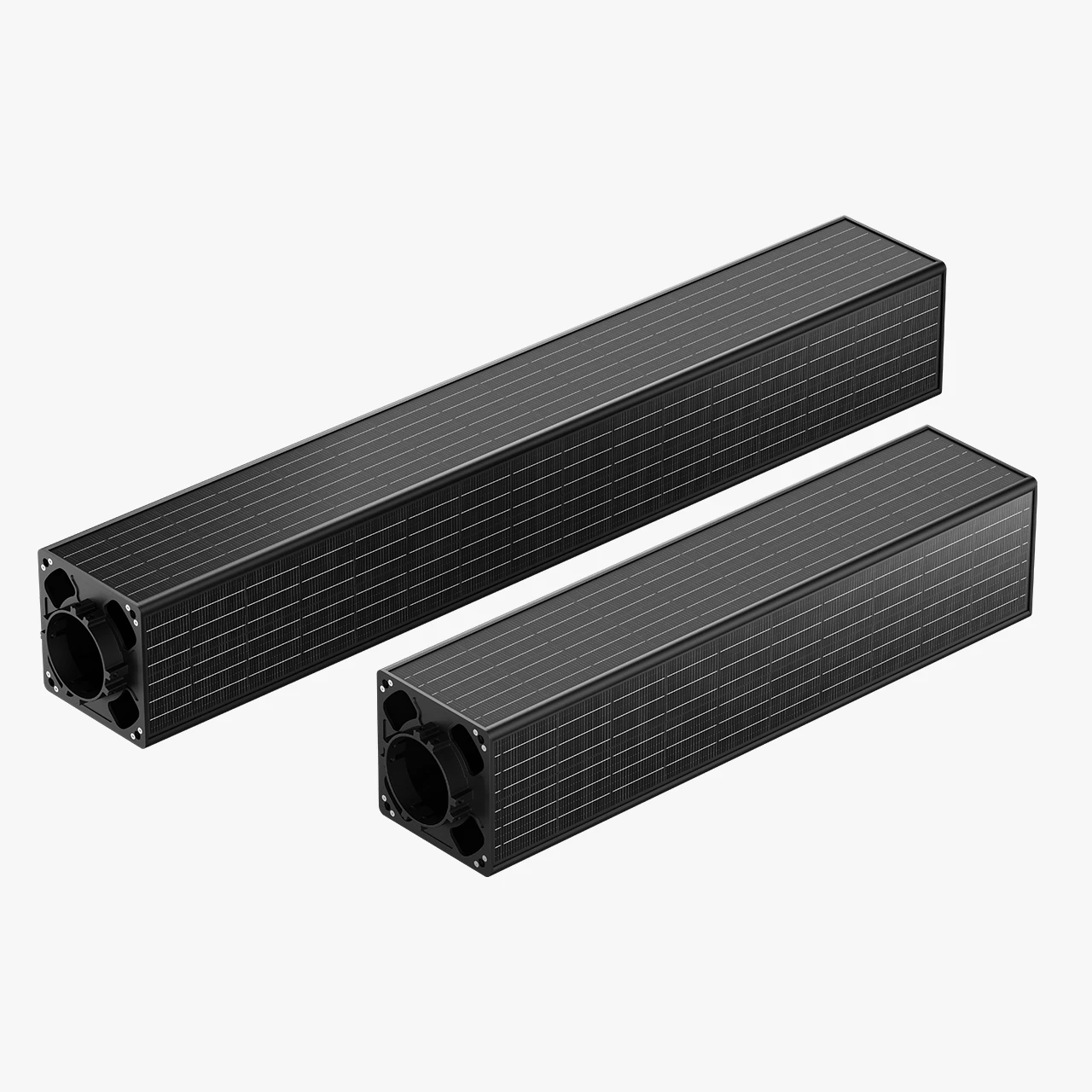

We are proud to present our newly developed quadrilateral vertical solar module, designed to combine high performance with modern aesthetics for outdoor lighting applications. Available in two sizes—1.4 meters and 2 meters in height—each module is equipped with high-efficiency monocrystalline silicon solar cells, achieving a conversion efficiency of up to 22.5%. With a lifespan exceeding 20 years, the system supports modular installation, allowing multiple panels to be combined to meet various power requirements while maintaining a sleek, vertical profile.

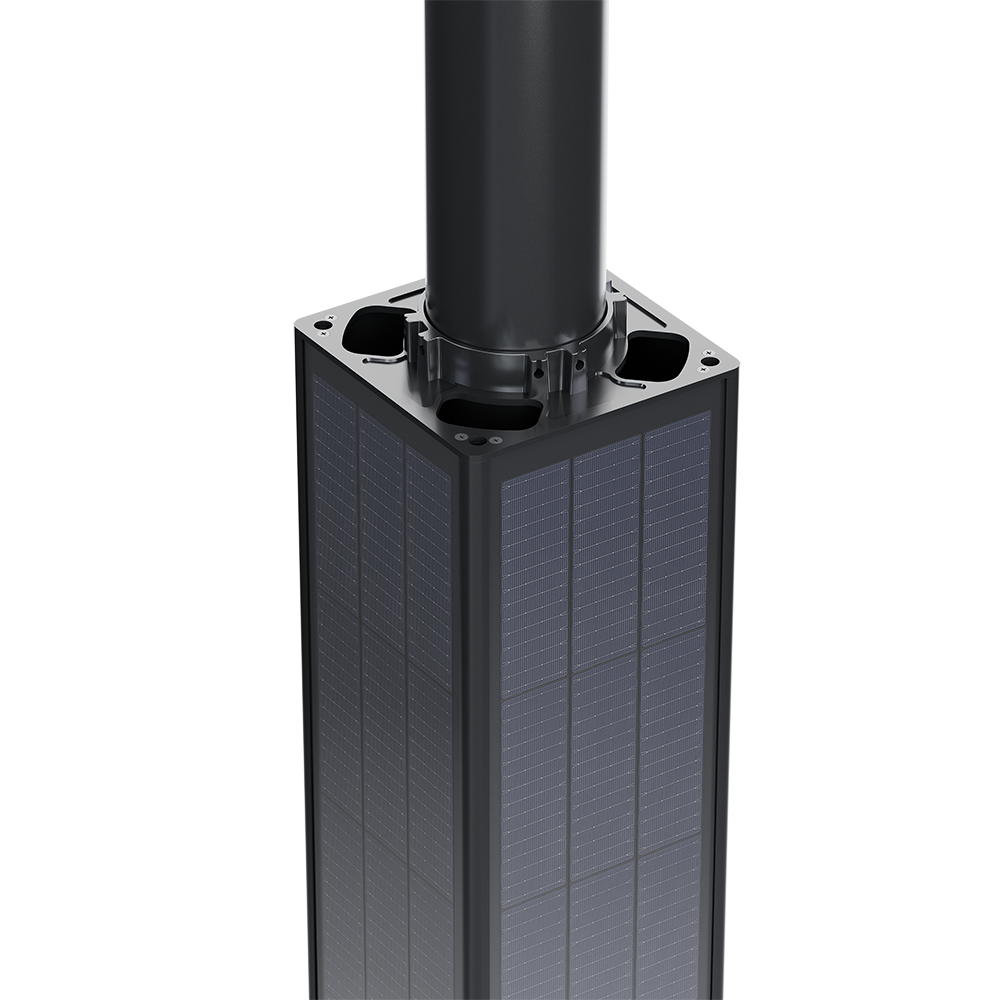

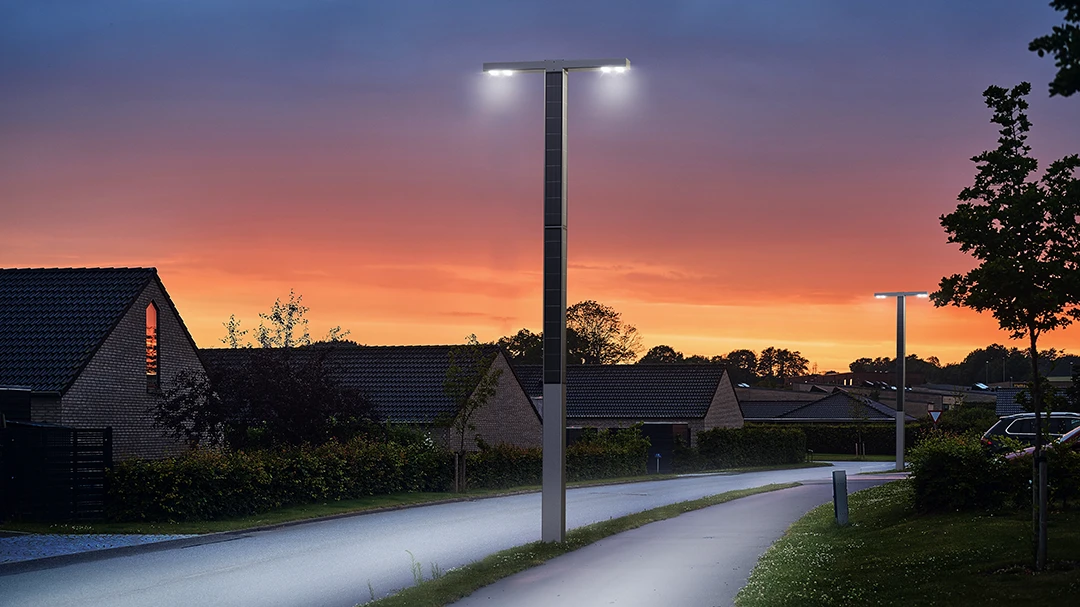

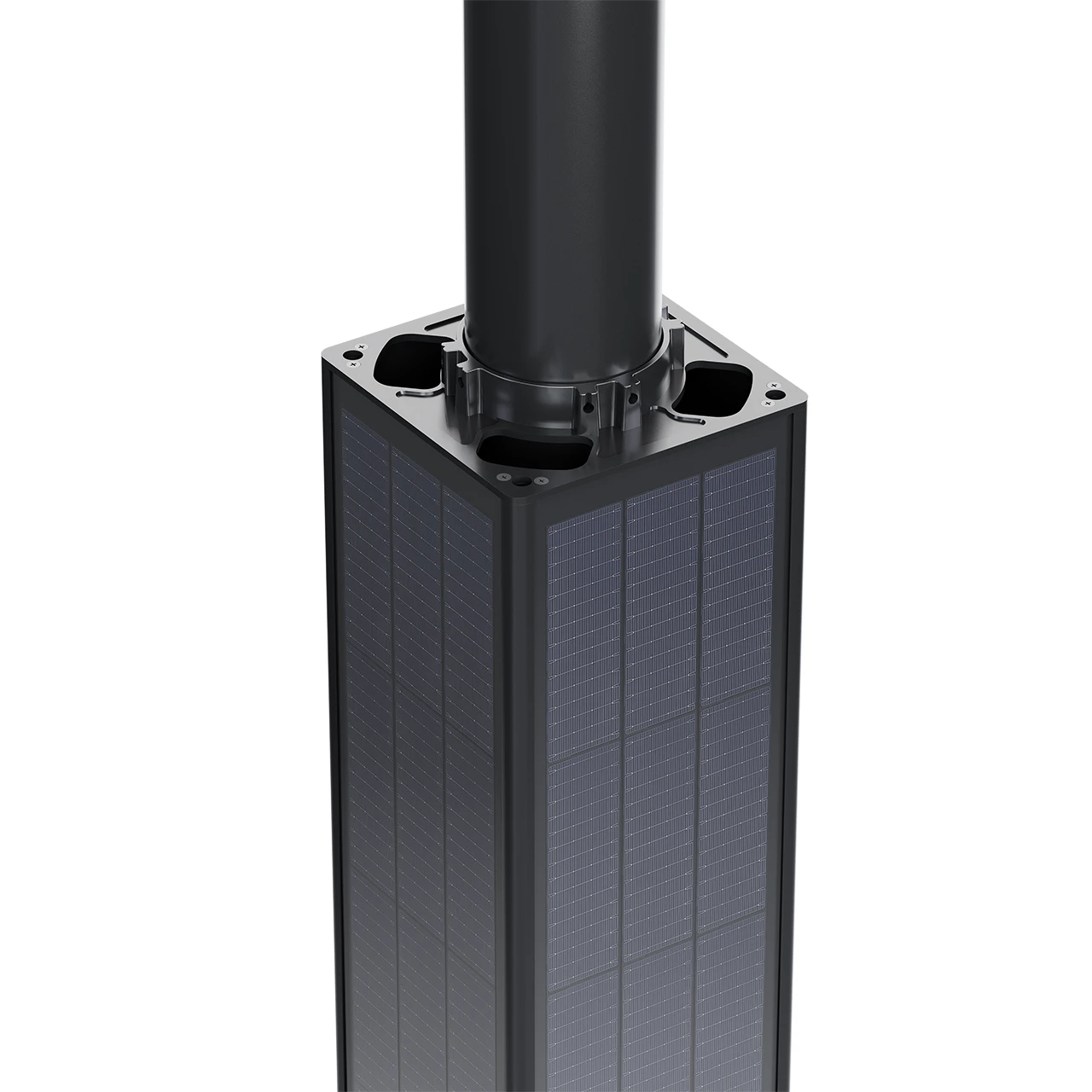

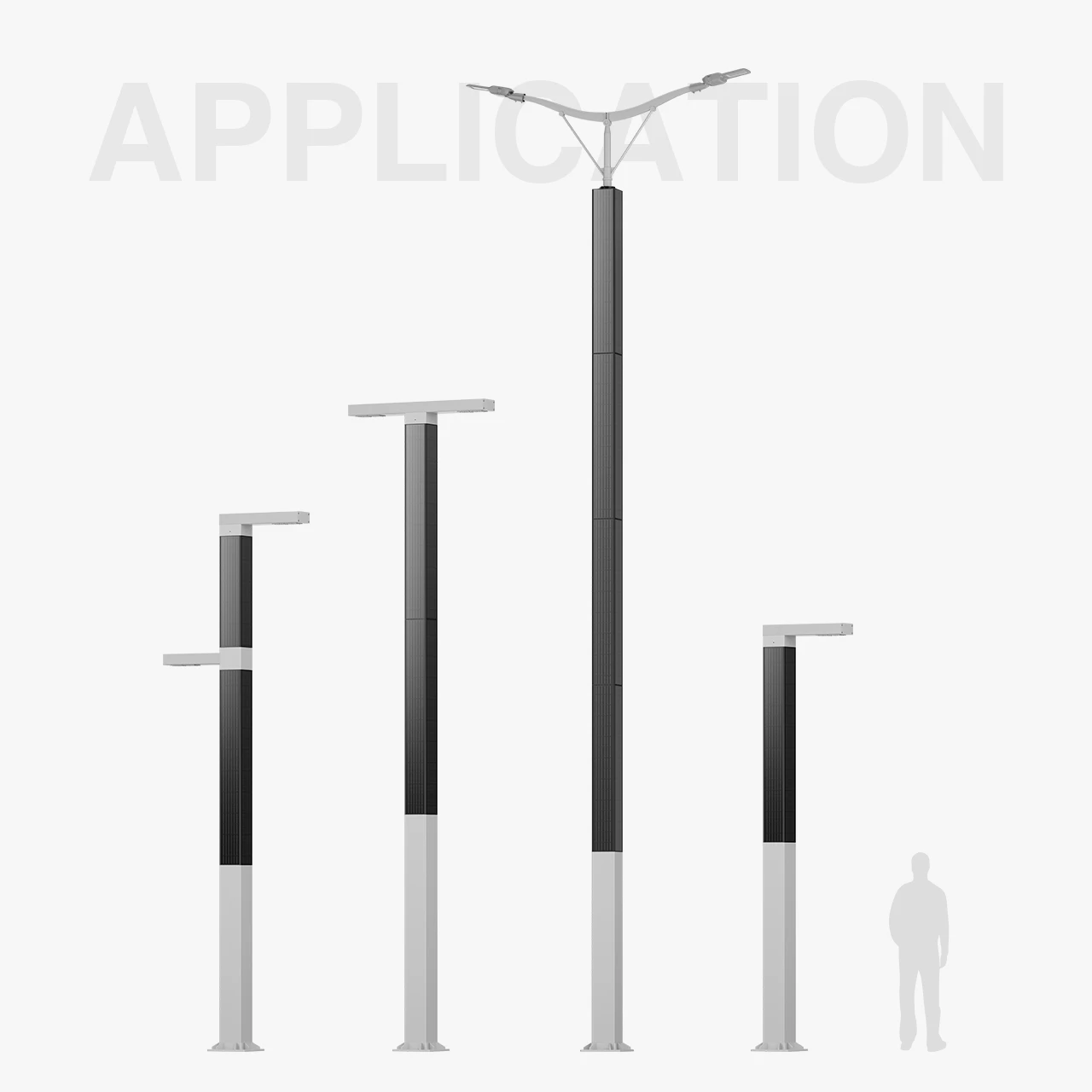

This innovative solar module is engineered to pair seamlessly with our in-house designed light poles and luminaires, providing excellent visual and functional consistency. It is also fully compatible with a wide range of mainstream poles and lamp heads, offering great flexibility for different project needs. Whether used in parks, driveways, parking areas, marinas, or other public spaces, this vertical solar module is a future-ready solution that delivers efficiency, durability, and architectural harmony in one compact system.

Key Componente & Advantages

Snow Free in Winter
There is no risk of less or even no power generation from solar panel caused by snow accumulation in winter time.
360° Full Day Charging
Half area of round solar tube is facing to sun all the time to ensure continous charging all day long, generating more power.
Dust & Sand Free
Sand & dust will not accumulate on the vertically installed solar panel. no need to clean the solar panels frequently

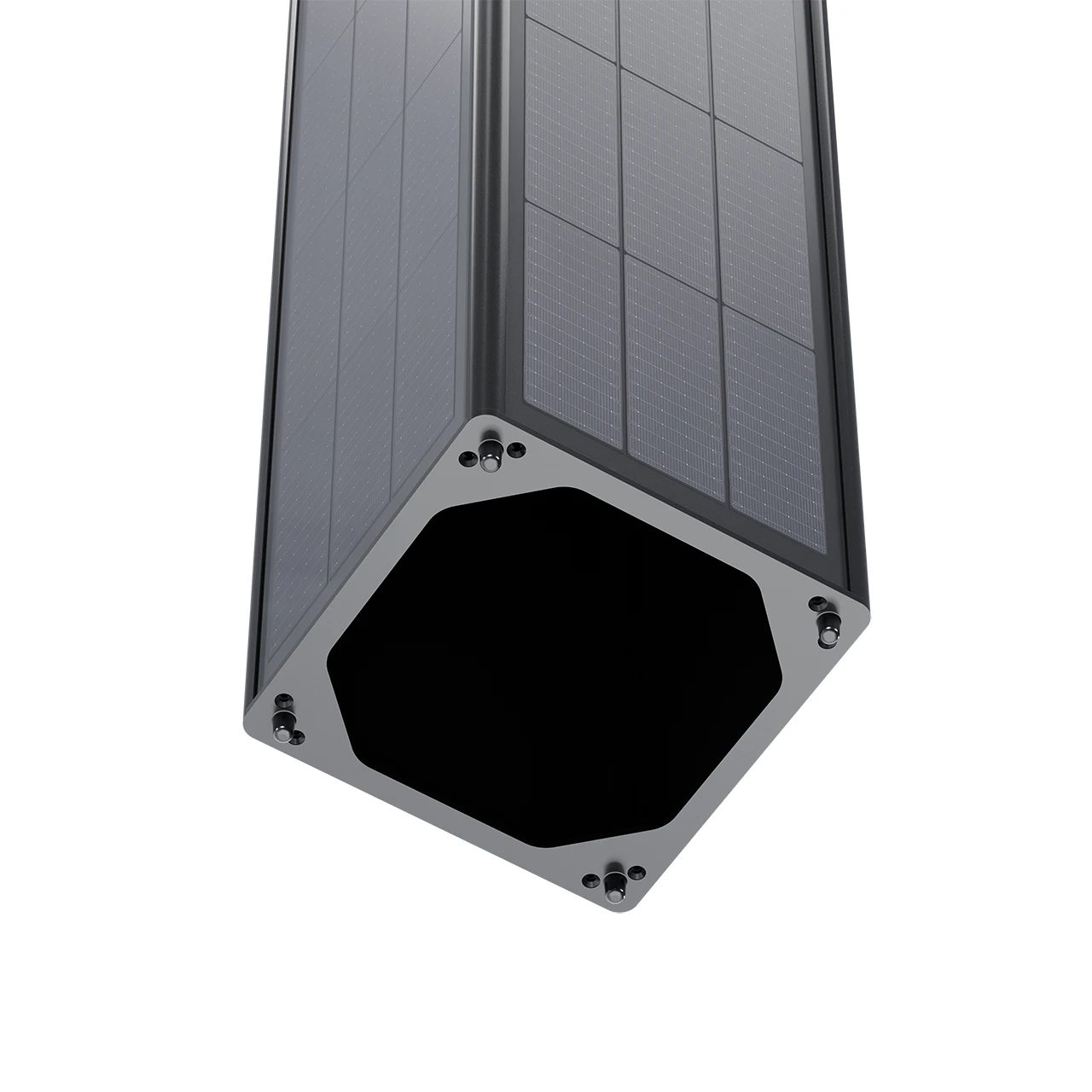

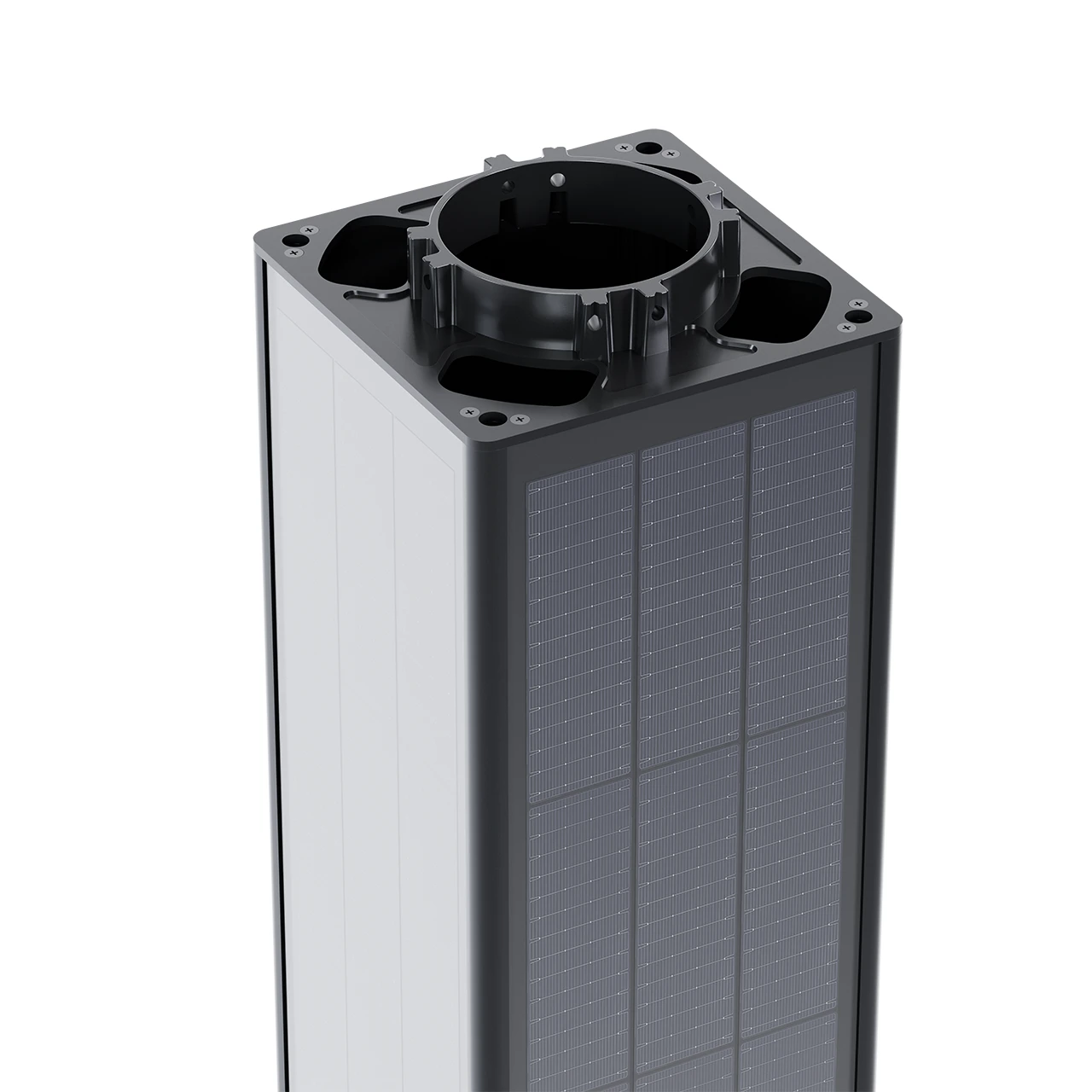

Modular Installation
It adopts modular concepts and uses male and female sliding installation structures to make the installation easier。
Strong Wind Resistance
Smaller area facing wind, it has very great wind resistant performance up to 160km/H.
Aesthetic Uniformity
Integrating the battery inside the light pole results in a cleaner, more stylish appearance for the entire solar street light system, aligning with the aesthetic standards of modern cities and high-end communities.

Main Specification

Model Number
SQ140
SQ220
P.max
140 Watts
220 Watts
Vmp
Imp
Dimension
1400*220*220mm
2000*220*220mm
Profile Material
Glass + Aluminium
Cable & Connector
2.5mm Universal MC4
Solar Cell Efficiency
23.2%
Solar Cell Type
MONO
Working Temp.
-40°C ~ 85°C
Warranty
5 years
Life Time
>20 years
N.W / G.W
Certificates
CE, ROHS, IP65

Main Specification

Model Number
P.max
Vmp
Imp
Dimension
Profile Material
Cable & Connector
Solar Cell Efficiency
Solar Cell Type
Working Temp.
Warranty
Life Time
N.W / G.W
Certificates
SQ140
SQ220
140 Watts
220 Watts
1400*220*220mm
2000*220*220mm
Glass + Aluminium
2.5mm Universal MC4
23.2%
MONO
-40°C ~ 85°C
5 years
>20 years
CE, ROHS, IP65

Download

Data Sheet
User Manual
Certificate

Projects Cases

Projects Cases

You May Ask

1.
Can the battery tells the working status or battery power instantly?
Yes, the Aurora battery box can indicate its operating status: charging, discharging, and various indicator lights that display the battery's energy level. Clients can easily monitor the status directly from the battery box.
2.
If we use this battery box, what is the range of light pole diameters?
The minimium diameter is 190mm to put the small size battery cylinder. and 230mm to put the big one.
3.
What is the minimum recommended size for the access door? Length and width
The size of the door in the pole is different against each battery capacity, please confirm with our team before you make the pole.
4.
The size of the door in the pole is different against each battery capacity, please confirm with our team before you make the pole.
for less than 1000WH, we use 32700 cell (3.2V 6000mAH), and over than 1000WH, we use 32140 cell (3.2V 15000mAh)
5.
Where is the controller?
Normally, the controller is not inside of the battery box, But it can be also inside in some case depends on the system design from engineer.
6.
What is the maximum capacity of the built-in battery of the light pole?
The max length of the battery cylinder is about 1 meter long considering the installation into the pole, for much higher battery capacity, we can put 2 or 3 battery cylinders in parallel connection in one pole.
7.
Will the battery temperature be higher when it is inside of the pole?
When the battery is inside of the pole, the pole will shelter 80% of heating from sun, this will benifit to reduce the temp of battery. And our battery adopts quality BMS which allows big current charging and discharging and the temperature remains low.
8.
Will there be a problem if i use two battery cylinder in parallel connection in one system?
Yes, 2 or 3 battery cylinders can be connected in parallel to get higher battery capacity
9.
What is the water resistance rating of the battery?
The battery has excellent sealing performance. Thanks to the die-cast aluminum structure, the battery housing has reached the IP67 protection level.
10.
Do you sell the battery separately?
Yes, the battery can be also used for many various applications , for example, small power system, solar camera, solar signal lights, traffic light etc. not only limited to solar lights.
