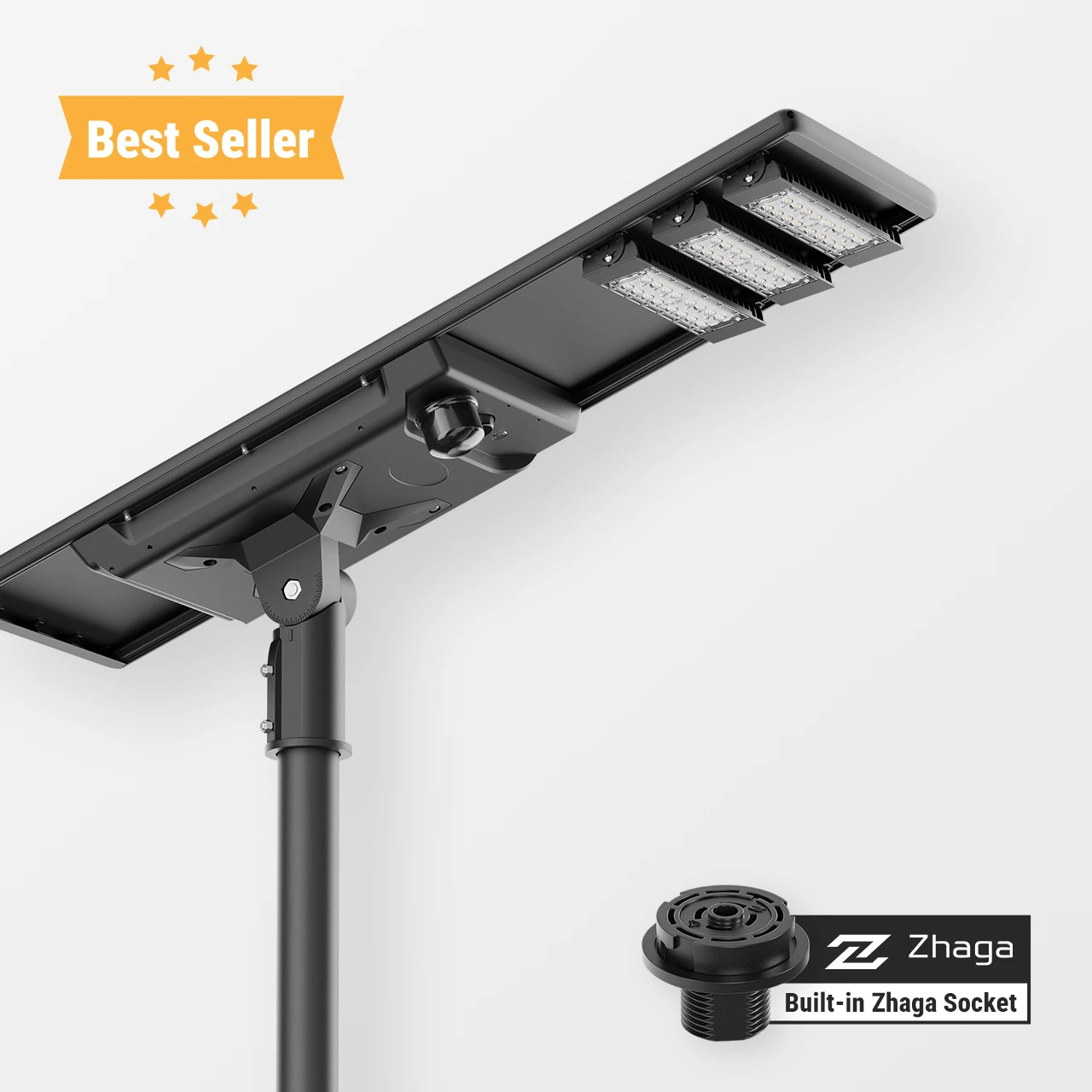

DIYA 80W All In One Solar Street Light

Adjustable LED Module | 80W | MPPT

Model

80W

100W

LED Luminous

13,600lm

17,000lm

Solar Panel

103W

125W

LiFePO4 Battery

12.8V 54AH

12.8V 60AH

Solar Controller

MPPT with Sensor

●

The DIYA series stands as the ultimate all in one solar street light solution, seamlessly integrating high-efficiency monocrystalline solar panels, a robust MPPT controller, and premium SMD5050 LED chips. Engineered for durability, the unit features a high-grade aluminum alloy body with an anti-corrosion coating, boasting IP66 waterproof and IK08 impact resistance ratings. Its unique modular design allows for adjustable LED modules, ensuring precise light distribution tailored to specific site requirements.

Delivering a powerful output from 60W to 180W, DIYA is a top-tier solar LED street light for highways, urban main roads, and large-scale industrial projects. The versatile mounting bracket supports both horizontal and vertical adjustments for optimal sun exposure. Furthermore, with the optional Zhaga-D4i socket, DIYA evolves into a smart solar street lighting system, enabling seamless IoT integration and remote management for future-ready, energy-efficient smart cities.

Key Componente & Advantages

MPPT Charge Controller

maximizes energy efficiency ensuring longer battery life and consistent illumination without blackout。

LiFePo4 Battery

Grade A+ Battery cell with high uniformity of internal resistance and charging and discharging.

High Brightness LED

High brightness led enhances visibility and safety while providing energy-efficient

Programmable by Remote

The lighting program can be modified anytime by remote control according to customers' requirement.

Motion Sensor

PIR or microwave sensor could be enabled to save more energy and extend the lifetime and more days autonomy.

Adjustable LED Module

The angle of LED module is adjustable according to road width with better lighting performance, increasing the lighting utilization and less lighting waste.

Main Specification

Item number

DIYA-60W

DIYA-80W

DIYA-100W

DIYA-120W

LED power

60W

80W

100W

120W

Luminous

10,200lm

13,600lm

17,000lm

20,400lm

CCT range

3000K~6000K

●

LED module

SMD5050

●

LiFePO4 battery

12.8V 42AH

12.8V 54AH

12.8V 60AH

16V 54AH

Solar panel

18V 82W

18V 103W

18V 125W

18V 148W

Product size

1085mm

1280mm

1580mm

1800mm

Charge controller

MPPT

●

Pole size

76mm

●

Installation height

5 ~ 8m

●

Warranty

5 Years

●

Main Specification

Item number

LED power

Luminous

CCT range

LED module

LiFePO4 battery

Solar panel

Product size

Charge controller

Pole size

Installation height

Warranty

DIYA-60W

DIYA-80W

DIYA-100W

DIYA-120W

60W

80W

100W

120W

10,200lm

13,600lm

17,000lm

20,400lm

3000K~6000K

●

SMD5050

●

12.8V 42AH

12.8V 54AH

12.8V 60AH

16V 54AH

18V 82W

18V 103W

18V 125W

18V 148W

1085mm

1280mm

1580mm

1800mm

MPPT

●

76mm

●

5 ~ 8m

●

5 Years

●

Download

Data Sheet

User Manual

Certificate

You May Ask

Can all-in-one solar light connect with 220V AC?

ZAIN all-in-one solar light is available in hybrid solution(DC+AC), adopting hybrid charge controller to succeed in this solution.

What's the type of sensor for all in one?

Sensor available in PIR or Microwave sensor, we suggest PIR sensor for pole height below 7-8 meters, Microwave sensor for pole height over 8 meters.

What is all-in-one solar street light?

All-in-one solar street light integrated all components in one fixture, including LED light, battery, charge controller, solar panel, easy for installation, no need wiring or extra brackets.

What's the material of all-in-one solar street light?

Auroras adopts die-cast aluminum to build a robust lighting fixture for all the models of solar street light

What're the benefits of ZAIN battery box outside the case?

The separated battery box is good for heat insulation, easy to disassemble and maintain, and has good IP protection.

What is the default working mode of ZAIN solar street light

2h 100%+4h（30% + 70% sensor）+7h（20% +50% sensor） , it can be modified easily by remote control according to customers' requirement.

What‘s the adjustable range of LED board ?

The adjustment range is +30° ~ -10°, this is to ensure the lighting hits the road with higher use efficiency without wasting.

What is the diameter of the pole for zain AIO solar light?

There are two standard sizes as 76mm and 60mm. Considering the load-bearing problem, we recommend using 60mm/76mm for power below 100w(2 modules or 3 modules ). and Use 76mm for high power models.

Can we customized the light fixture color ?

Factory standard RAL code is 7016, customized light fixture color can be accepted with MOQ 100PCS

10.

Can i use a AC power adapter to charge batteries?

We can provide a AC charger to charge the solar light in case the light is put in warehouse too long time.

11.

What is the maximum battery capacity of ZAIN ?

The Max battery capacity is 25.6V 1536WH, all the light configurations can be customized according to requirements.
