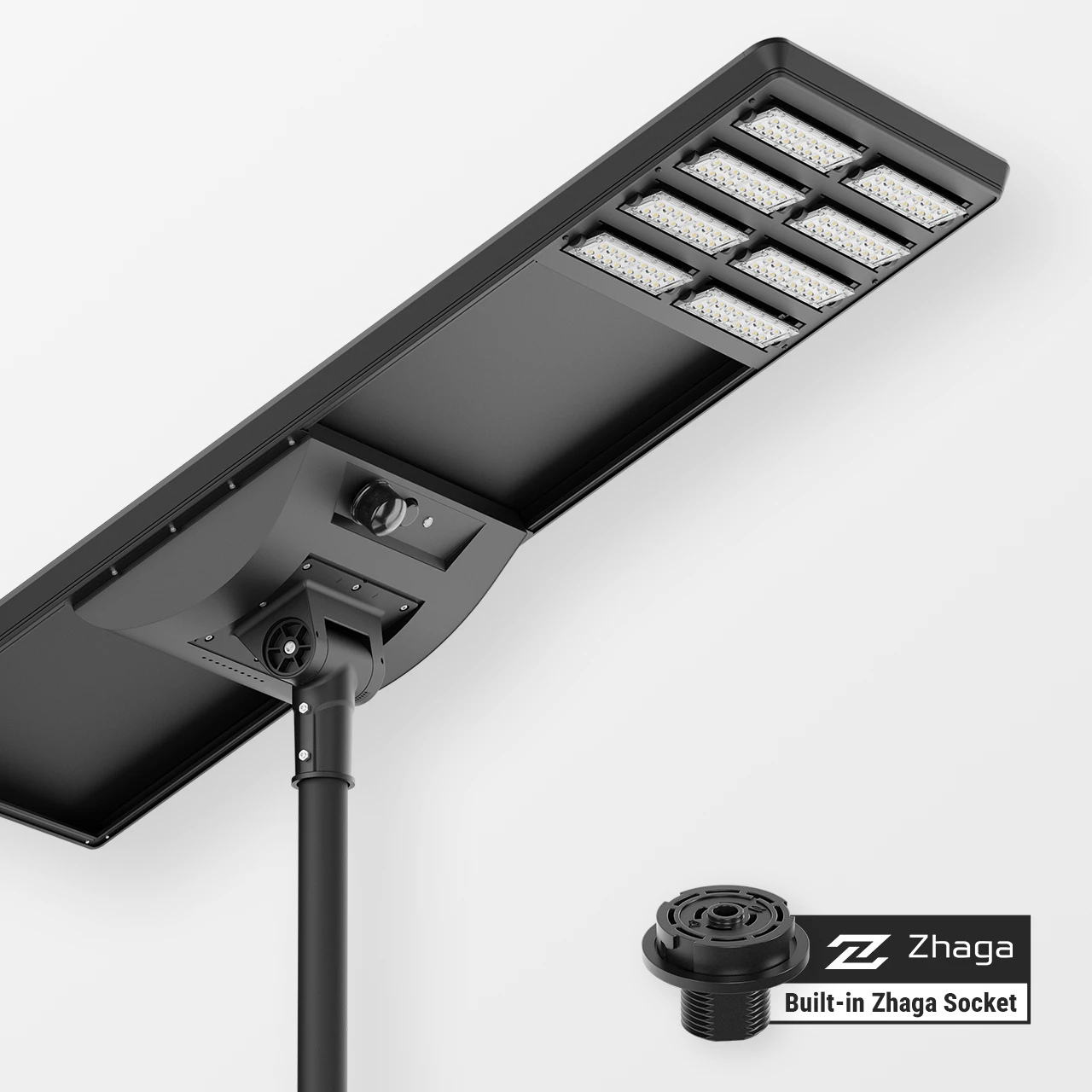

HELILUX | 200W AIO Solar LED Street Light

Four adjustable LED modules | 32,400lm | High Brightness LED

LED Power

200W

LED Luminous

32,400lm

Solar Panel

36V 260W

LiFePO4 Battery

25.6V 1843Wh

Solar Controller

120W

Key Componente & Advantages

MPPT Charge Controller

maximizes energy efficiency ensuring longer battery life and consistent illumination without blackout。

LiFePo4 Battery

Grade A+ Battery cell with high uniformity of internal resistance and charging and discharging.

High Brightness LED

High brightness led enhances visibility and safety while providing energy-efficient

Anti-UV Material

All materials are made from quality raw materials including optic, painting, glue, cable etc which are all completely Anti-uv Protected

Adjustable LED Module

The angle of LED module is adjustable according to road width with better lighting performance, increasing the lighting utilization and less lighting waste.

Extreme Weather Resistance

Sustain super durability during very extreme weather in typhoon. hurricane days with strong body made of alu die casting and sst material.

Main Specification

Item number

HELILUX-150W

HELILUX-180W

HELILUX-200W

LED power

150W

180W

200W

Luminous

14,400lm

17,000lm

32,400lm

CCT range

3000K~6000K

2200K~6000K

3000K

LED module

SMD 5050 5W/LED max

●

LiFePO4 battery

25.6V 48AH

25.6V 60AH

25.6V 72AH

Solar panel

36V 190W

36V 235W

36V 260W

Product size

1510*730*405mm

1590*700'390mm

Charge controller

MPPT

●

Pole size

12,000mm

Installation height

Warranty

5 Years

●

Main Specification

Item number

LED power

Luminous

CCT range

LED module

LiFePO4 battery

Solar panel

Product size

Charge controller

Pole size

Installation height

Warranty

HELILUX-150W

HELILUX-180W

HELILUX-200W

150W

180W

200W

14,400lm

17,000lm

32,400lm

3000K~6000K

2200K~6000K

3000K

SMD 5050 5W/LED max

●

25.6V 48AH

25.6V 60AH

25.6V 72AH

36V 190W

36V 235W

36V 260W

1510*730*405mm

1590*700'390mm

MPPT

●

12,000mm

5 Years

●

Download

Data Sheet

User Manual

Certificate

You May Ask

Can all-in-one solar light connect with 220V AC?

ZAIN all-in-one solar light is available in hybrid solution(DC+AC), adopting hybrid charge controller to succeed in this solution.

What's the type of sensor for all in one?

Sensor available in PIR or Microwave sensor, we suggest PIR sensor for pole height below 7-8 meters, Microwave sensor for pole height over 8 meters.

What is all-in-one solar street light?

All-in-one solar street light integrated all components in one fixture, including LED light, battery, charge controller, solar panel, easy for installation, no need wiring or extra brackets.

What's the material of all-in-one solar street light?

Auroras adopts die-cast aluminum to build a robust lighting fixture for all the models of solar street light

What're the benefits of ZAIN battery box outside the case?

The separated battery box is good for heat insulation, easy to disassemble and maintain, and has good IP protection.

What is the default working mode of ZAIN solar street light

2h 100%+4h（30% + 70% sensor）+7h（20% +50% sensor） , it can be modified easily by remote control according to customers' requirement.

What‘s the adjustable range of LED board ?

The adjustment range is +30° ~ -10°, this is to ensure the lighting hits the road with higher use efficiency without wasting.

What is the diameter of the pole for zain AIO solar light?

There are two standard sizes as 76mm and 60mm. Considering the load-bearing problem, we recommend using 60mm/76mm for power below 100w(2 modules or 3 modules ). and Use 76mm for high power models.

Can we customized the light fixture color ?

Factory standard RAL code is 7016, customized light fixture color can be accepted with MOQ 100PCS

10.

Can i use a AC power adapter to charge batteries?

We can provide a AC charger to charge the solar light in case the light is put in warehouse too long time.

11.

What is the maximum battery capacity of ZAIN ?

The Max battery capacity is 25.6V 1536WH, all the light configurations can be customized according to requirements.
