WOODPECKER PILLAR
WOODPECKER PILLAR

WOODPECKER PILLAR A | Architectural Garden Light

SP-280H to SP-520H | Vertical Solar Integration | Architectural Landscape Lighting
Model Number
SP-280H
SP-520H
Max LED Power
24W
60W
Luminous Flux
4,800lm
12,000lm
Solar Panel
18V 164Wp
18V 220Wp
LiFePO4 Battery
12.8V 24AH
12.8V 60AH
Send inquiry
More info
WOODPECKER PILLAR
WOODPECKER PILLAR

WOODPECKER PILLAR A | Architectural Garden Light

SP-280H to SP-520H | Vertical Solar Integration | Architectural Landscape Lighting
Model Number
SP-280H
SP-520H
Max LED Power
24W
60W
Luminous Flux
4,800lm
12,000lm
Solar Panel
18V 164Wp
18V 220Wp
LiFePO4 Battery
12.8V 24AH
12.8V 60AH
Send inquiry
More info

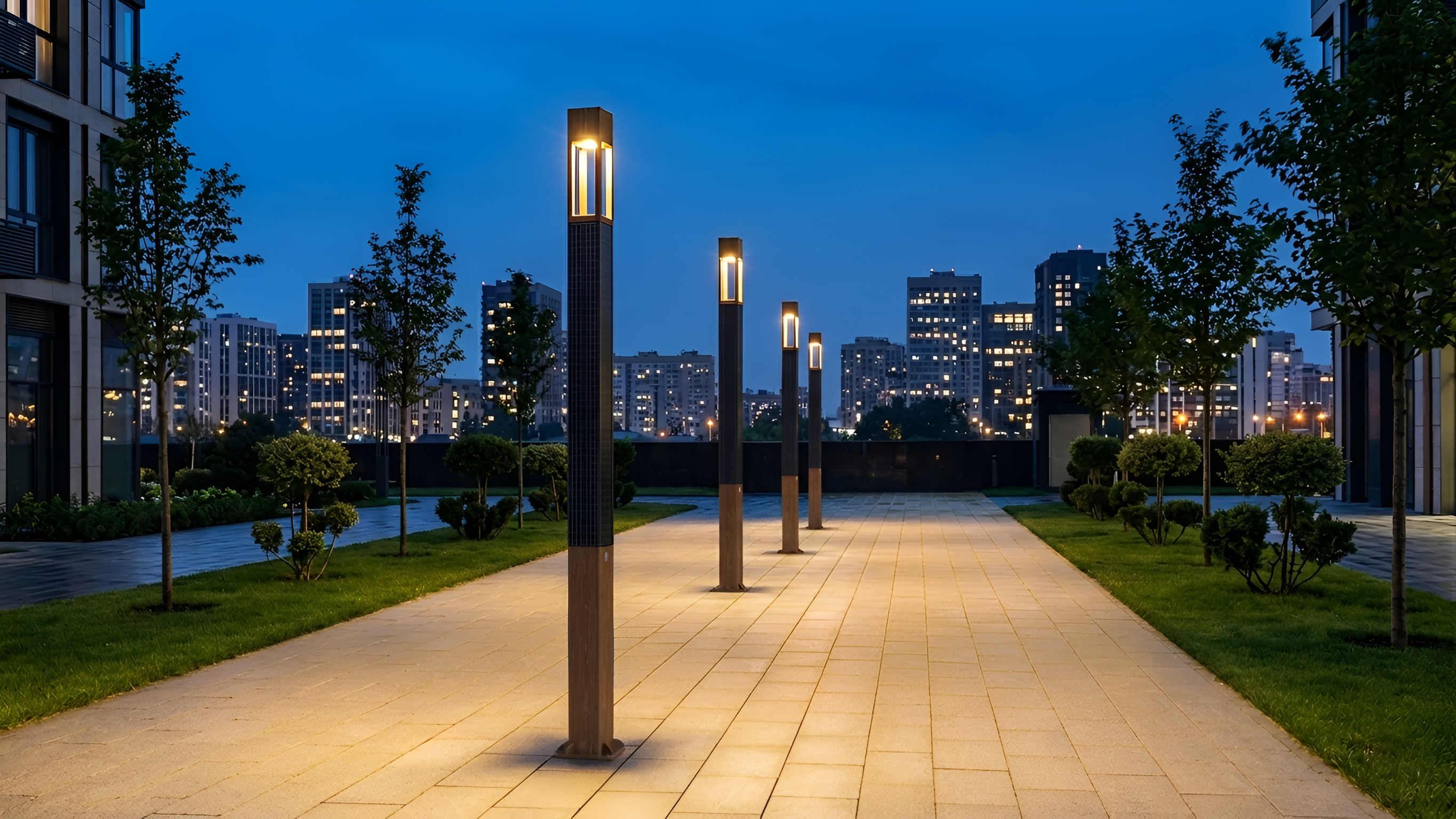

WOODPECKER PILLAR A is designed as an architectural solar lighting element for premium gardens, pathways and landscaped environments. Its tall, disciplined silhouette integrates square solar modules directly into the structure, allowing solar technology to become part of the architectural form rather than an added component.


The series combines high-brightness LED lighting, MPPT energy management and LiFePO4 battery storage within a refined aluminum alloy structure. Available in multiple heights from 2.8m to 5.2m, PILLAR A supports a broad range of landscape scales while maintaining a consistent visual language across the project.


IP65 and IK08 protection, optional Microwave or PIR sensing, and vertically mounted solar modules support dependable long-term outdoor operation. A selection of Black, Black Walnut and customizable architectural finishes allows PILLAR A to integrate naturally into contemporary gardens, courtyards, residential landscapes and pedestrian spaces.

Key Componente & Advantages

MPPT Charge Controller
maximizes energy efficiency ensuring longer battery life and consistent illumination without blackout。
LiFePo4 Battery
Grade A+ Battery cell with high uniformity of internal resistance and charging and discharging.
Motion Sensor
PIR or microwave sensor could be enabled to save more energy and extend the lifetime and more days autonomy.
Vertical Solar Panels
Capture sunlight from multiple angles for improved energy generation.
High Brightness LED
200lm/W high-efficiency LED delivers powerful illumination with low energy consumption.
IP65 & IK08 Protection
Engineered with IP65 ingress protection and IK08 impact resistance for reliable outdoor use.

Main Specification

Model Name
SP-280H
SP-320H
SP-360H
SP-420H
Dimension
188*188*2800mm
188*188*3200mm
188*188*3600mm
188*188*4200mm
Max LED Power
24W
30W
36W
42W
Luminous Flux
4,800lm
6,000lm
7,200lm
8,400lm
LED Chips
SMD5050 5W/LED max
•
•
•
LED Lifetime
100,000H
•
•
•
CRI
Ra ≥76
•
•
•
CCT
2200K-6000K
•
•
•
Solar Panel
18V 164Wp MONO*1nos
18V 188Wp MONO*1nos
18V 220Wp MONO*1nos
18V 164Wp MONO*2nos
Total Power
164Wp
188Wp
220Wp
328Wp
Cell Efficiency
22.5%
•
•
•
Solar Panel Lifetime
>20 years
•
•
•
Battery Capacity
12.8V 24AH
12.8V 30AH
12.8V 36AH
12.8V 42AH
Battery Lifetime
4,000 cycles D.O.D 80%
•
•
•
IP&IK Protection
IP65 IK08
•
•
•
Material
Aluminum Alloy
•
•
•
Color
Wood / Black / Customized
•
•
•
Sensor Type
Microwave / PIR (optional)
•
•
•
Warranty
5 Years
•
•
•

Main Specification

Model Name
Dimension
Max LED Power
Luminous Flux
LED Chips
LED Lifetime
CRI
CCT
Solar Panel
Total Power
Cell Efficiency
Solar Panel Lifetime
Battery Capacity
Battery Lifetime
IP&IK Protection
Material
Color
Sensor Type
Warranty
SP-280H
SP-320H
SP-360H
SP-420H
188*188*2800mm
188*188*3200mm
188*188*3600mm
188*188*4200mm
24W
30W
36W
42W
4,800lm
6,000lm
7,200lm
8,400lm
SMD5050 5W/LED max
•
•
•
100,000H
•
•
•
Ra ≥76
•
•
•
2200K-6000K
•
•
•
18V 164Wp MONO*1nos
18V 188Wp MONO*1nos
18V 220Wp MONO*1nos
18V 164Wp MONO*2nos
164Wp
188Wp
220Wp
328Wp
22.5%
•
•
•
>20 years
•
•
•
12.8V 24AH
12.8V 30AH
12.8V 36AH
12.8V 42AH
4,000 cycles D.O.D 80%
•
•
•
IP65 IK08
•
•
•
Aluminum Alloy
•
•
•
Wood / Black / Customized
•
•
•
Microwave / PIR (optional)
•
•
•
5 Years
•
•
•

Download

Data Sheet
User Manual
Certificate
1.
Datasheet of SOLVERT PILLARS
*.pdf

Projects Cases

Vertical Solar Street Lights in Pakistan
1000 sets of light poles and 2000 sets of cylindrical solar street lights are installed in Pakistan by DHA project
26-09-2025
More...
Vertical Solar Light Poles in Mexico
463 sets of high-power vertical light poles were installed at the Mexican Customs Terminal.
27-03-2025
More...
Vertical solar street light in Oman
Oman has enhanced its urban road lighting by installing 75 hexagonal cylindrical solar street lights. These energy-efficient systems provide reliable illumination, improving road safety for both drivers and pedestrians.
25-03-2025
More...
Vertical Solar Street Lights in Abu Dhabi
179 vertical solar street lights for Solar Roadway Lighting Project in Abu Dhabi,UAE.
24-03-2025
More...

Projects Cases

Vertical Solar Street Lights in Pakistan
1000 sets of light poles and 2000 sets of cylindrical solar street lights are installed in Pakistan by DHA project
26-09-2025
View More
Vertical Solar Light Poles in Mexico
463 sets of high-power vertical light poles were installed at the Mexican Customs Terminal.
27-03-2025
View More
Vertical solar street light in Oman
Oman has enhanced its urban road lighting by installing 75 hexagonal cylindrical solar street lights. These energy-efficient systems provide reliable illumination, improving road safety for both drivers and pedestrians.
25-03-2025
View More
Vertical Solar Street Lights in Abu Dhabi
179 vertical solar street lights for Solar Roadway Lighting Project in Abu Dhabi,UAE.
24-03-2025
View More

You May Ask

1.
What's the material of solar garden light?
Auroras's solar garden lights adopt UV-resistant polycarbonate and die cast aluminum.
2.
What's the CCT available for solar garden light?
Auroras's solar garden lights available in dual CCT, optional in 2700K+3000K, 3000K+4000K, 3000K+6000K, switchable by a remote control.
3.
What's the benefit of tilted solar panels of ATHENA?
It can prevent snow and rain, which helps improve charging efficiency.
4.
Can solar garden light connect with 220V AC?
ATHENA  is available in hybrid solution(DC+AC).
5.
Which solar garden light has IDA certification?
THEMIS and AUGE are IDA approved.
6.
Can I increase the battery of ATHENA or THEMIS ?
Yes, THEMIS battery can be doubled, but due to the limited space, Athena battery cannot be increased.
7.
Do you have the 60mm bracket for the solar garden light?
Yes, the standard size is 76mm. while there is an extra adapter, so the solar post light can be mounted on the pole with 60mm diameter.
8.
Can i turn ON/OFF the motion sensor?
Yes, it can be ON/OFF settable by remote control.
9.
Can you make ATHENA in 220V hybrid verision?
Yes, our ATHENA can be Hybrid version. When the battery is insufficient, it automatically triggers the mains to supply power.  the price will be 30usd more per unit.
10.
Is the battery and controller easily replaceable?
Yes, it can replaced / repaired easily.
