WOODPECKER TRI-180 | Solar Pathway Light

TRI-180 | Triangular Vertical Solar Design | 5 Years Warranty

Model Name

TRI-180

Luminous Flux

2,000lm

Solar Panel

42Wp MONO

LiFePO4 Battery

3.2V 30AH

Warranty

5 Years

Send inquiry

More info

WOODPECKER TRI-180 | Solar Pathway Light

TRI-180 | Triangular Vertical Solar Design | 5 Years Warranty

Model Name

TRI-180

Luminous Flux

2,000lm

Solar Panel

42Wp MONO

LiFePO4 Battery

3.2V 30AH

Warranty

5 Years

Send inquiry

More info

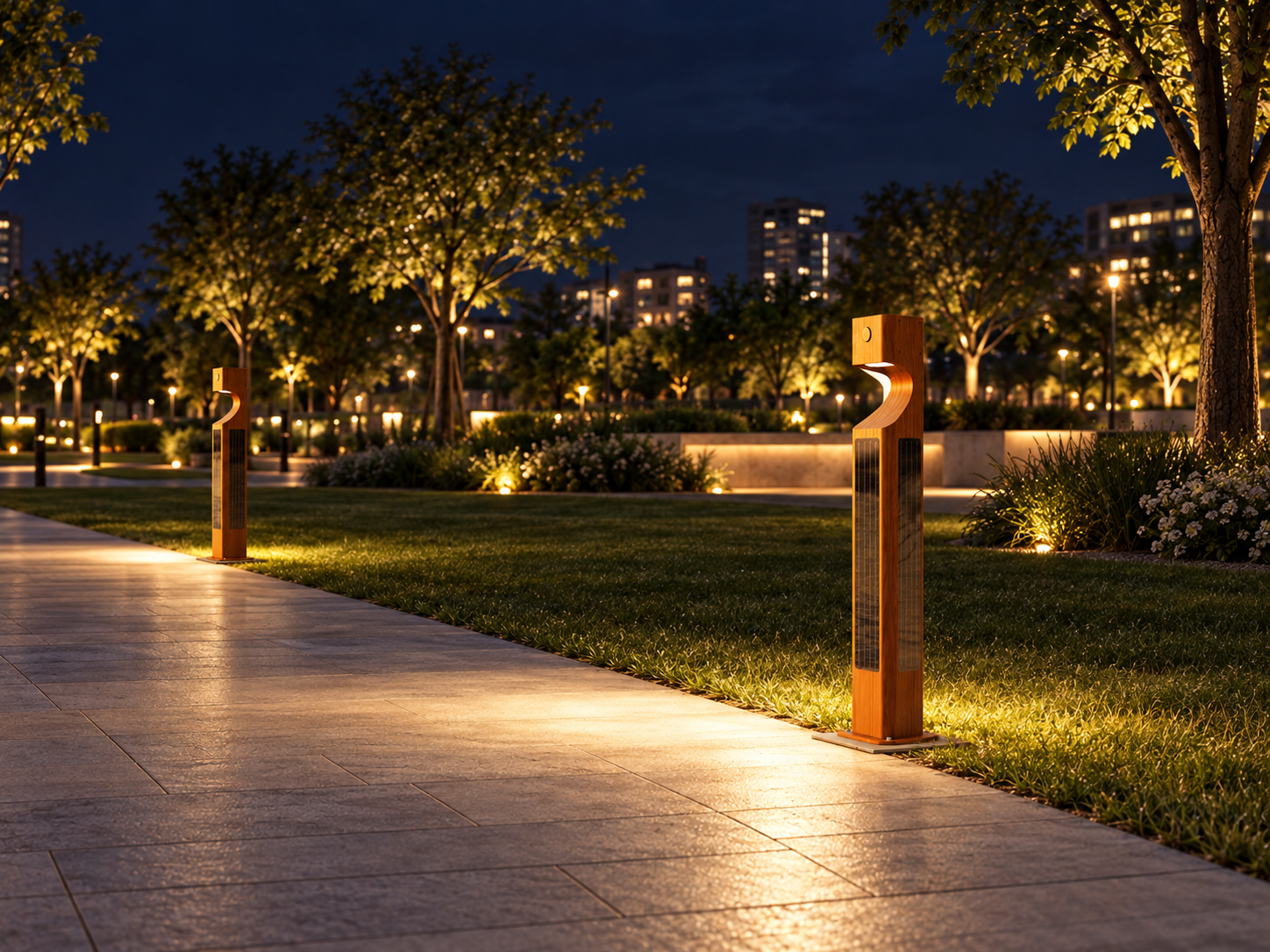

The WOODPECKER TRI-180 is a distinctive vertical solar pathway light shaped by bold sculptural geometry. Its triangular architectural form combines clean lines with a natural wood-inspired finish, creating a strong visual presence for open yards, pathways, architectural borders and contemporary outdoor landscapes.

Equipped with a 10W high-efficiency LED system delivering up to 2,000lm, TRI-180 integrates 42Wp mono solar panels with 23.5% cell efficiency and a long-life LiFePO4 battery. Microwave motion sensing and multiple remote-control modes support intelligent lighting operation, while the aluminum alloy structure, anti-corrosion coating, IP65 protection and IK08 impact resistance provide dependable outdoor durability.

Key Componente & Advantages

Vertical Solar Panels

Capture sunlight from multiple angles for improved energy generation.

High Brightness LED

200lm/W high-efficiency LED delivers powerful illumination with low energy consumption.

23.5% Cell Efficiency

High-efficiency mono solar cells improve energy conversion within a compact vertical design.

Long-Life LiFePO4 Battery

4,000 cycles at 80% D.O.D provide reliable energy storage for long-term operation.

Microwave Motion Sensor

Detects movement and automatically adjusts brightness to reduce unnecessary energy use.

Multiple Modes Remote Control

Built-in lighting programs allow flexible mode selection and brightness adjustment.

IP65 & IK08 Protection

Engineered with IP65 ingress protection and IK08 impact resistance for reliable outdoor use.

Anti-Corrosion Coating

Protective surface treatment enhances durability for long-term outdoor environments.

Wood Bionic Texture

Natural wood-inspired texture allows the fixture to integrate elegantly into surrounding landscapes.

Main Specification

Model Name

TRI-180

Dimension

180*160*1100mm

Max LED Power

10W

Luminous Flux

2,000lm

A.o.o

400~800lm

LED Chips

SMD5050 5W/LED max

LED Lifetime

100,000H

CRI

Ra ≥70

CCT

2200K / 3000K / 4000K / 6000K

Solar Panel

42Wp MONO

Cell Efficiency

23.5%

Solar Panel Lifetime

>20 years

Nominal Capacity

3.2V 30AH

Battery Lifetime

4,000 cycles D.O.D 80%

IP&IK Protection

IP65 IK08

Material

Aluminum Alloy

Color

wood / Black / Customized

Sensor Type

Microwave

Warranty

5 Years

Main Specification

Model Name

Dimension

Max LED Power

Luminous Flux

A.o.o

LED Chips

LED Lifetime

CRI

CCT

Solar Panel

Cell Efficiency

Solar Panel Lifetime

Nominal Capacity

Battery Lifetime

IP&IK Protection

Material

Color

Sensor Type

Warranty

TRI-180

180*160*1100mm

10W

2,000lm

400~800lm

SMD5050 5W/LED max

100,000H

Ra ≥70

2200K / 3000K / 4000K / 6000K

42Wp MONO

23.5%

>20 years

3.2V 30AH

4,000 cycles D.O.D 80%

IP65 IK08

Aluminum Alloy

wood / Black / Customized

Microwave

5 Years

Download

Data Sheet

User Manual

Certificate

Datasheet of WOODPECKER TRI-180

*.pdf

Download

User Manual of WOODPECKER TRI-180

*.pdf

Download

You May Ask

What's the material of solar bollard?

Auroras's solar bollard light heads adopt UV-resistant polycarbonate which is anti-vandal and of high transparent performance., Pillar is made of aluminum alloy.

What's the default working mode of solar bollard?

2h 100% +5h (30%+70% sensor)+6h (10%+40% sensor)

Which solar bollard lights reach IK10?

ARKO/MUSE/LETO/HESTIA/ATLAS

Which solar bollard light has IDA certification?

MUSE and LETO are IDA approved.

Is easy to replace the battery part?

All connections of components insides are using plug&play connectors, The battery can be easily replace / repaired with minimal time.

What is the thickness of the pole of Atlas?

The thickness is 6mm which is very strong and robust.

Could solar bollard lights increase battery capacity?

Some models of solar light can use bigger capacity battery, while 38.4WH battery is indeed very sufficient for low power consumption light, so normally we prefer to keep it as it is.

Which solar bollard light can use the battery capacity?

ARKO, MUSE, LETO, HESTIA

Can you change the powder coating color of fixture?

Yes, MOQ 100pcs per item.

10.

Do you accept OEM orders?

Yes, OEM is welcomed with MOQ 100pcs/item.
