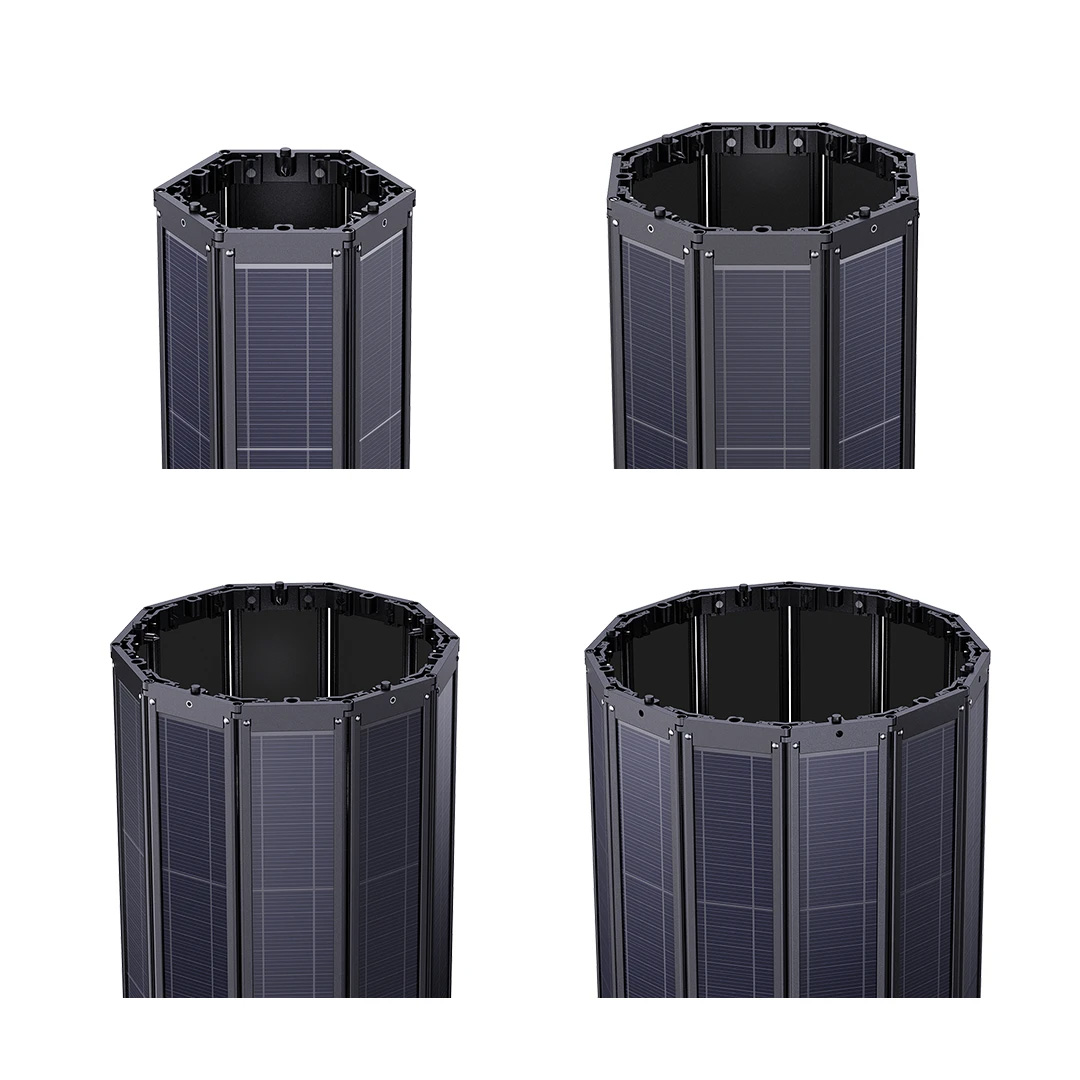

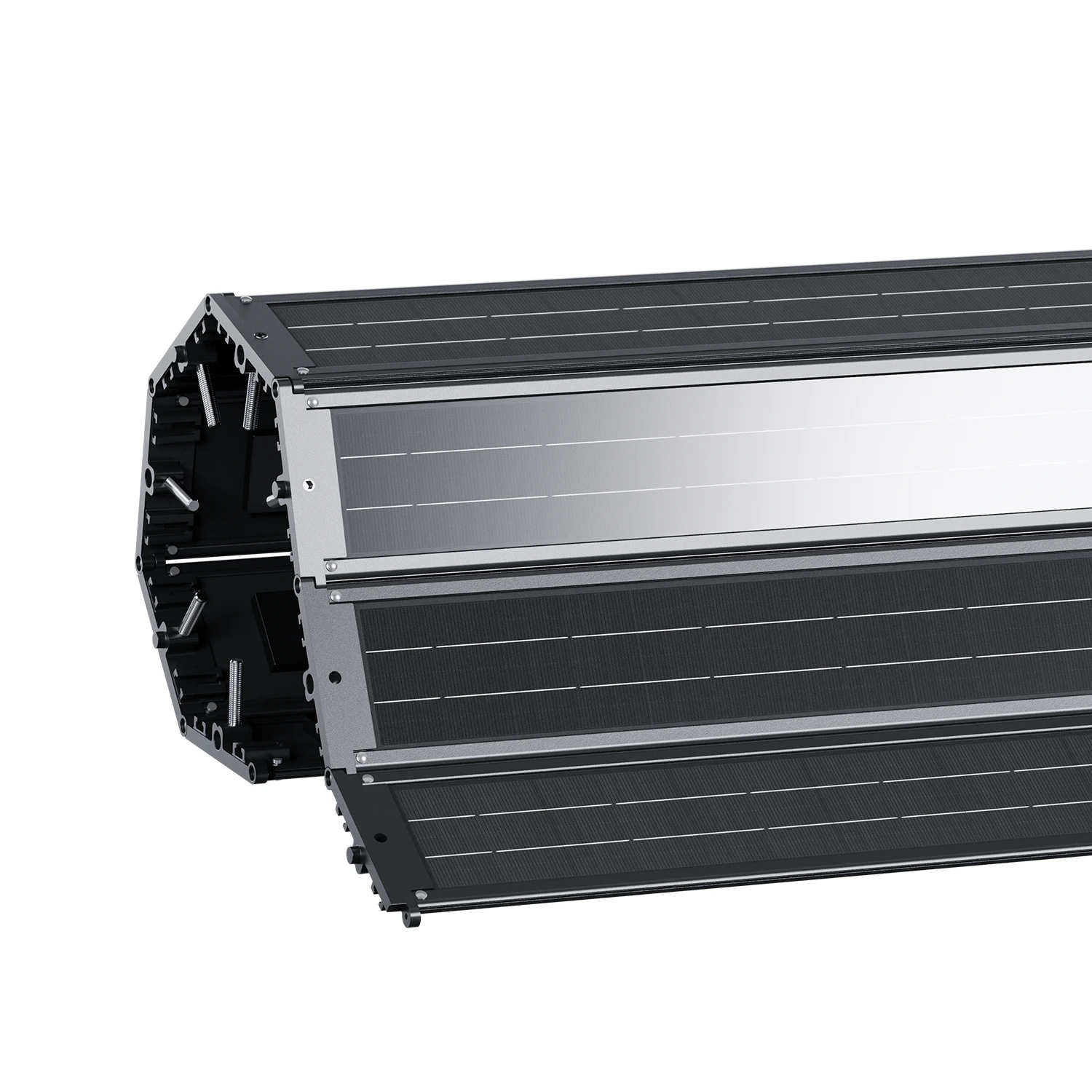

GeoFlex | Foldable Polygonal Solar Panel

Scalable | Foldable | Linkable
Model Number
OCTA-20018
OCTA-25018
P.max
200W
250W
Vmp
18V/36V
18V/36V
Imp
11.1A
13.9A
Dimension
1560*290*270mm
1560*360*340mm
foldable_solar_panel
vertical_solar_cylinder
high_power_foldable_solar_module
top_solar_panel
polygon_solar_module
foldable_solar_module_application
foldable_solar_panel
vertical_solar_cylinder
high_power_foldable_solar_module
top_solar_panel
polygon_solar_module
foldable_solar_module_application

GeoFlex | Foldable Polygonal Solar Panel

Scalable | Foldable | Linkable
Model Number
OCTA-20018
OCTA-25018
P.max
200W
250W
Vmp
18V/36V
18V/36V
Imp
11.1A
13.9A
Dimension
1560*290*270mm
1560*360*340mm
Send inquiry
More info

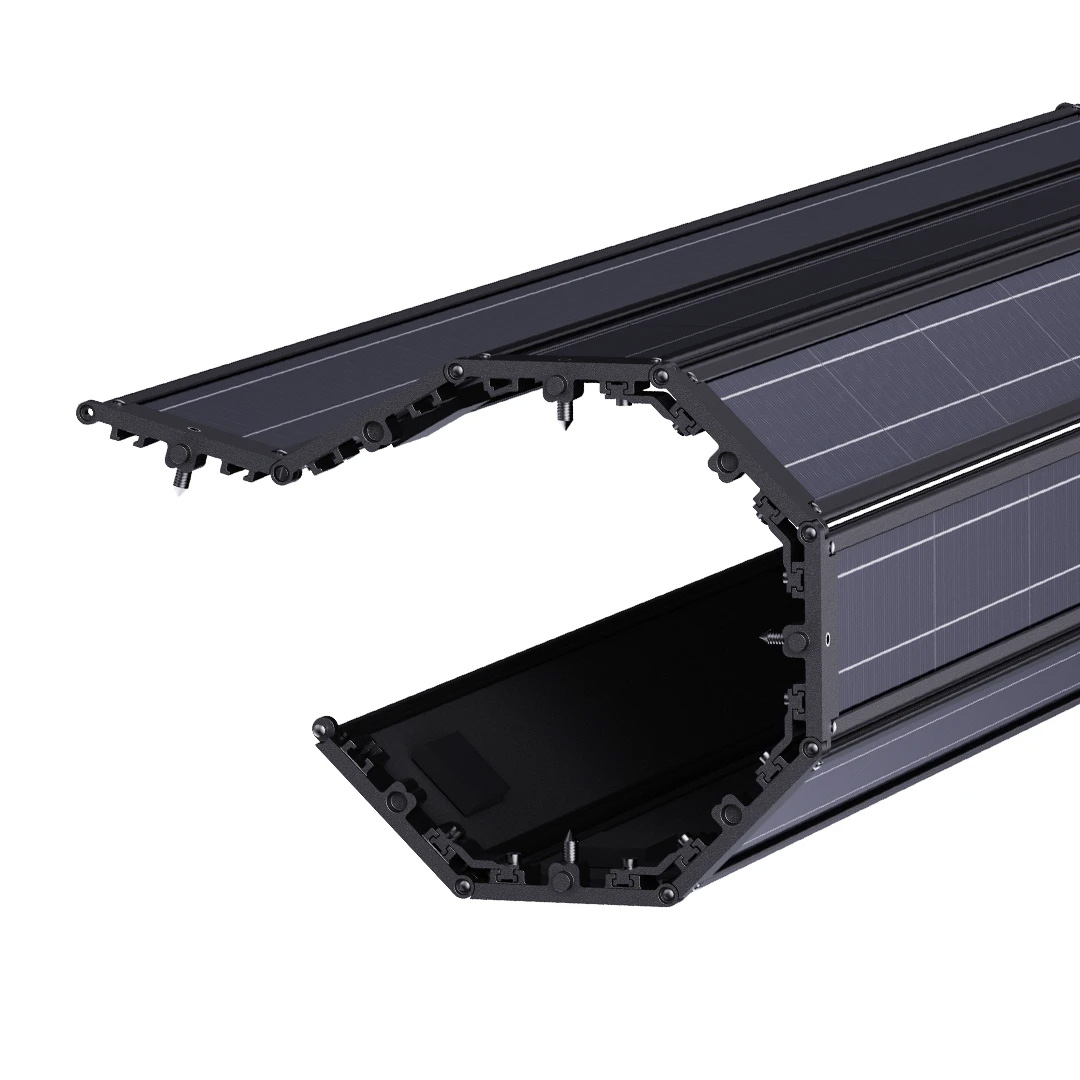

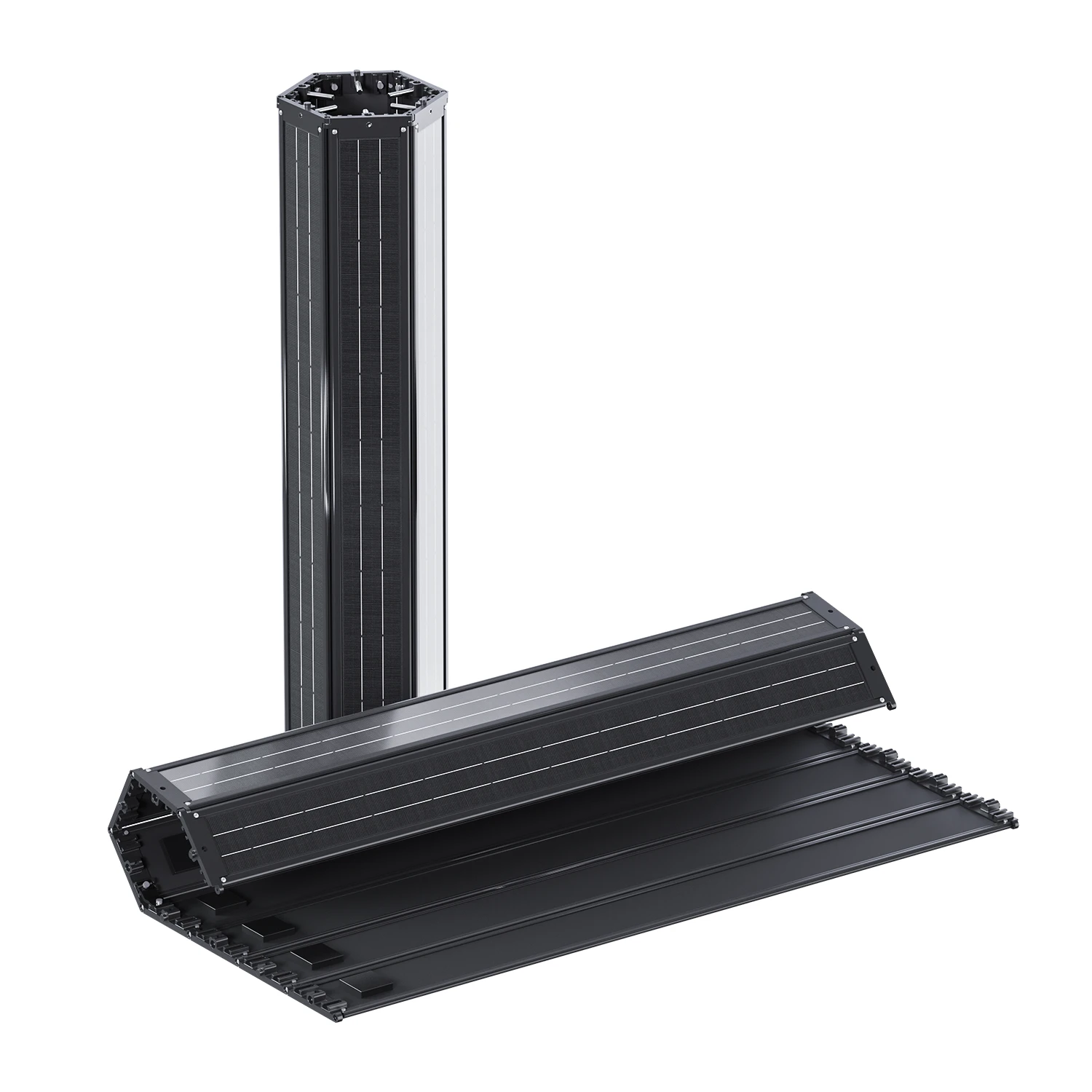

The GeoFlex Series introduces an innovative foldable polygonal solar panel design, adaptable to various shapes such as hexagons, octagons, or more, allowing for customized power outputs. The foldable structure reduces packaging volume by over 50%, significantly cutting international shipping costs. Its modular design enables seamless expansion for higher power needs, while the 360-degree charging capability ensures optimal sunlight capture throughout the day.

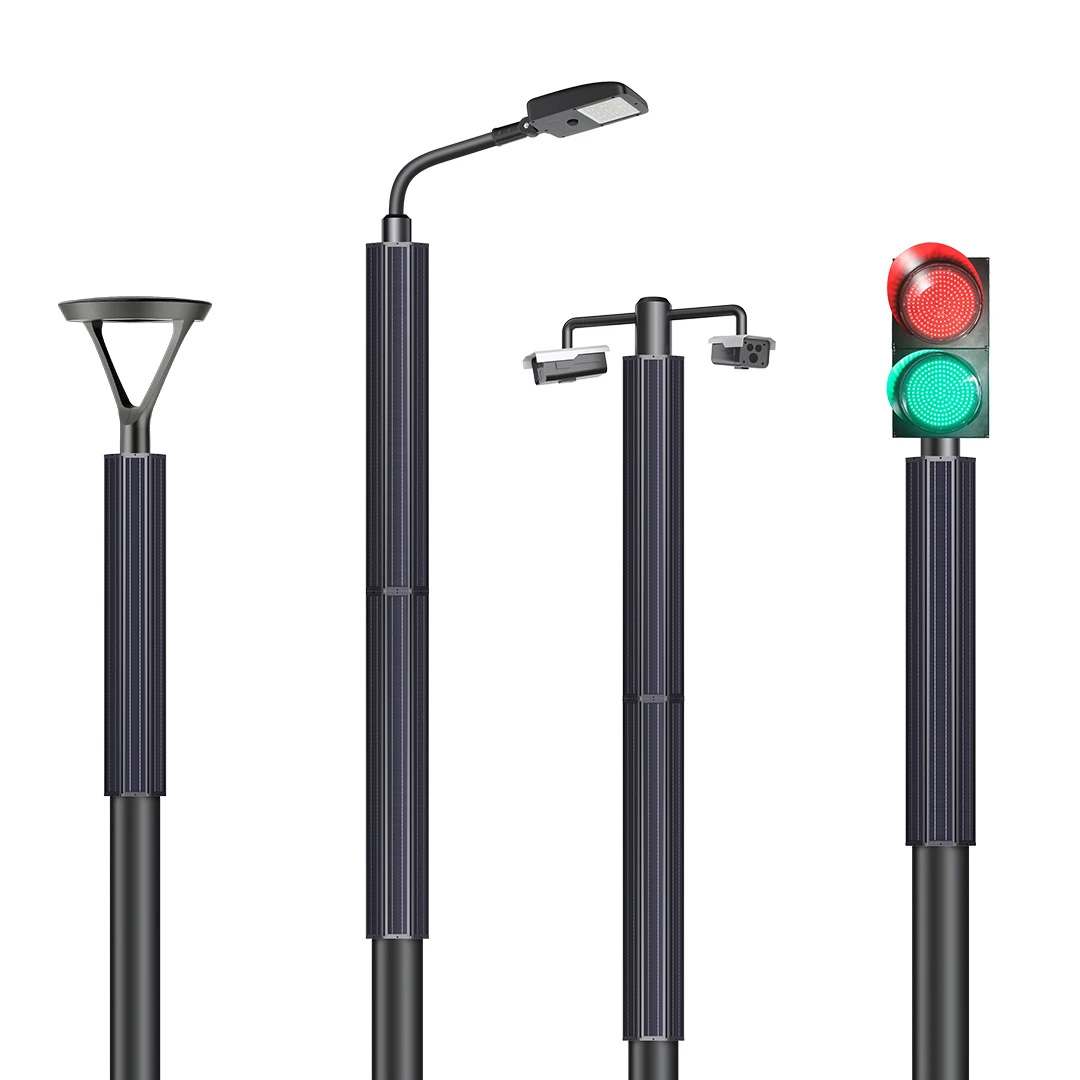

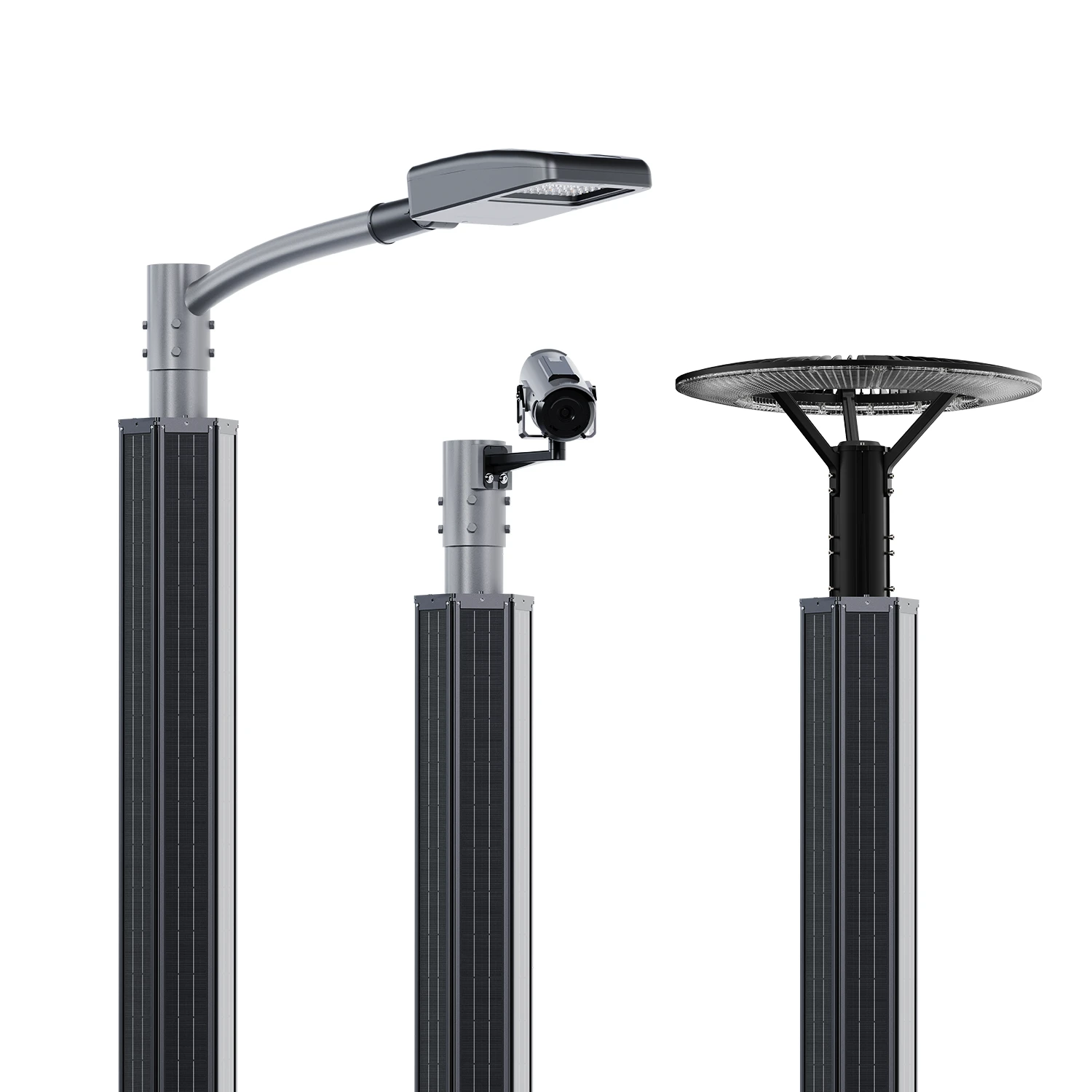

This system features vertical cylindrical solar panels, offering superior wind resistance and a sleek design that blends harmoniously with urban environments, preserving city aesthetics. Additionally, the design prevents snow accumulation and ensures excellent durability, making it ideal for solar streetlights, surveillance systems, traffic signals, and more. The GeoFlex Series is not just versatile; it's a sustainable solution engineered for functionality, efficiency, and modern urban integration.

Key Componente & Advantages

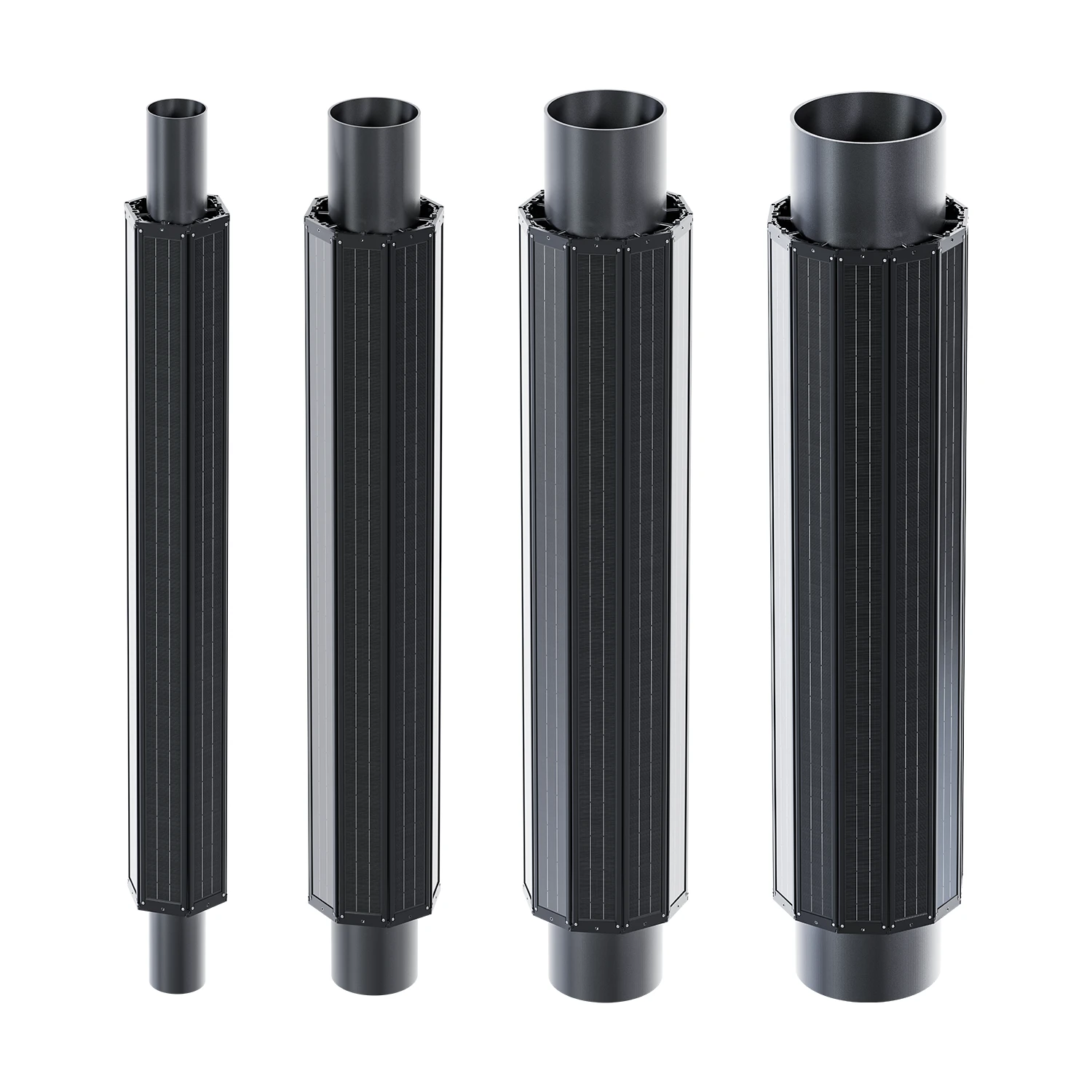

Fit to Different Size

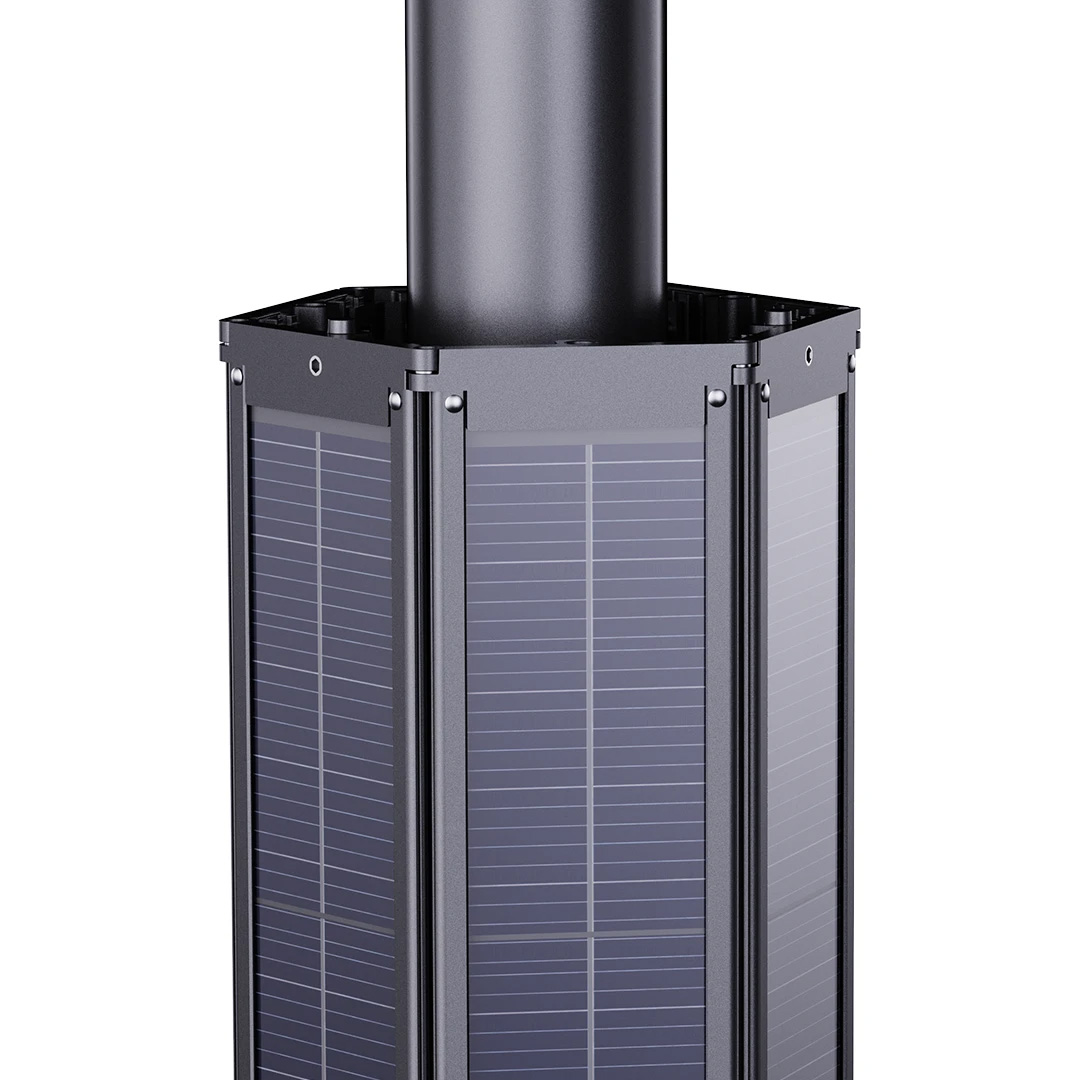

SolarWrap vertical solar cylinder is able to cater to different sizes and different shapes of mounting poles。
360° Full Day Charging
Half area of round solar tube is facing to sun all the time to ensure continous charging all day long, generating more power.
Dust & Sand Free
Sand & dust will not accumulate on the vertically installed solar panel. no need to clean the solar panels frequently

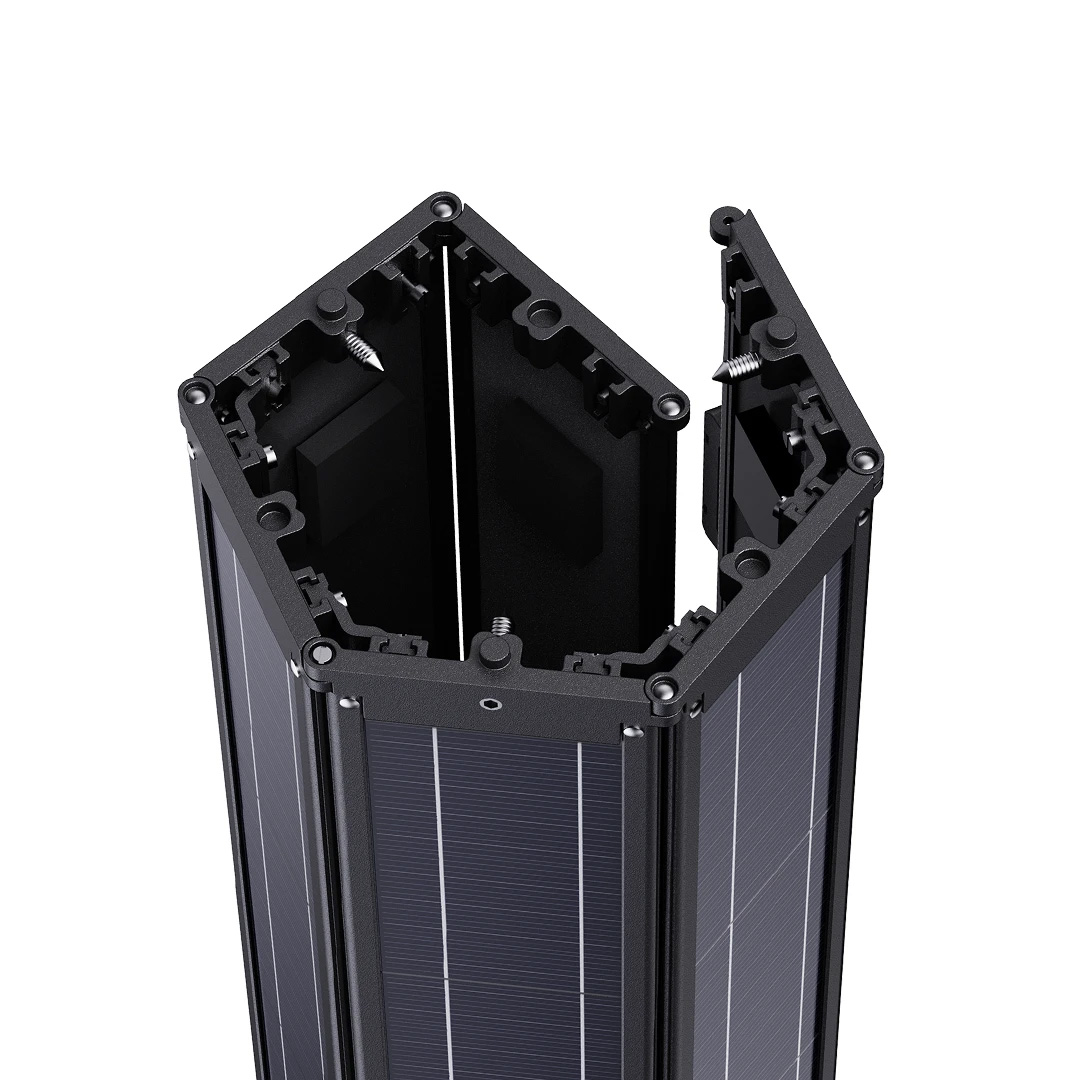

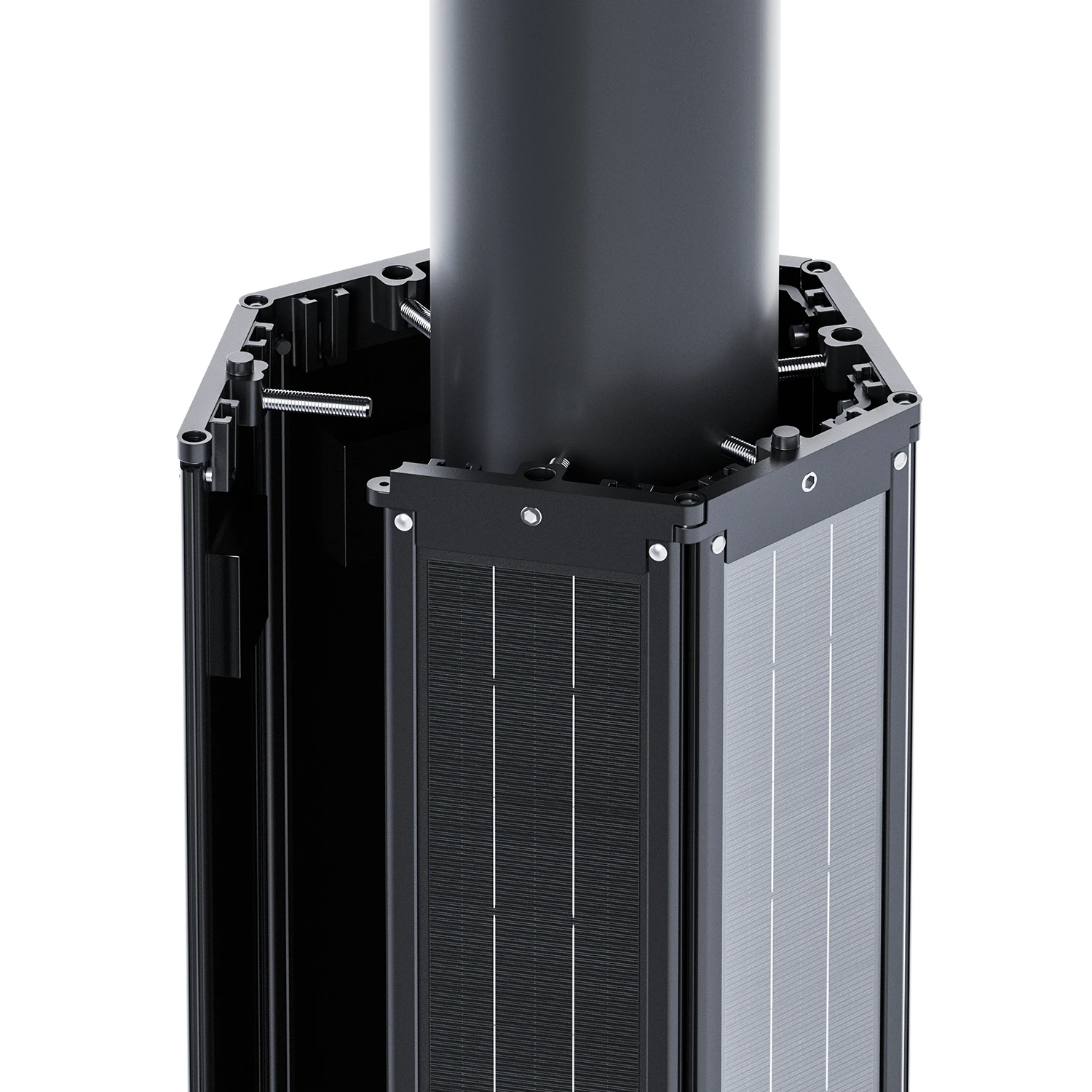

Modular Installation
It adopts modular concepts and uses male and female sliding installation structures to make the installation easier。
Strong Wind Resistance
Smaller area facing wind, it has very great wind resistant performance up to 160km/H.

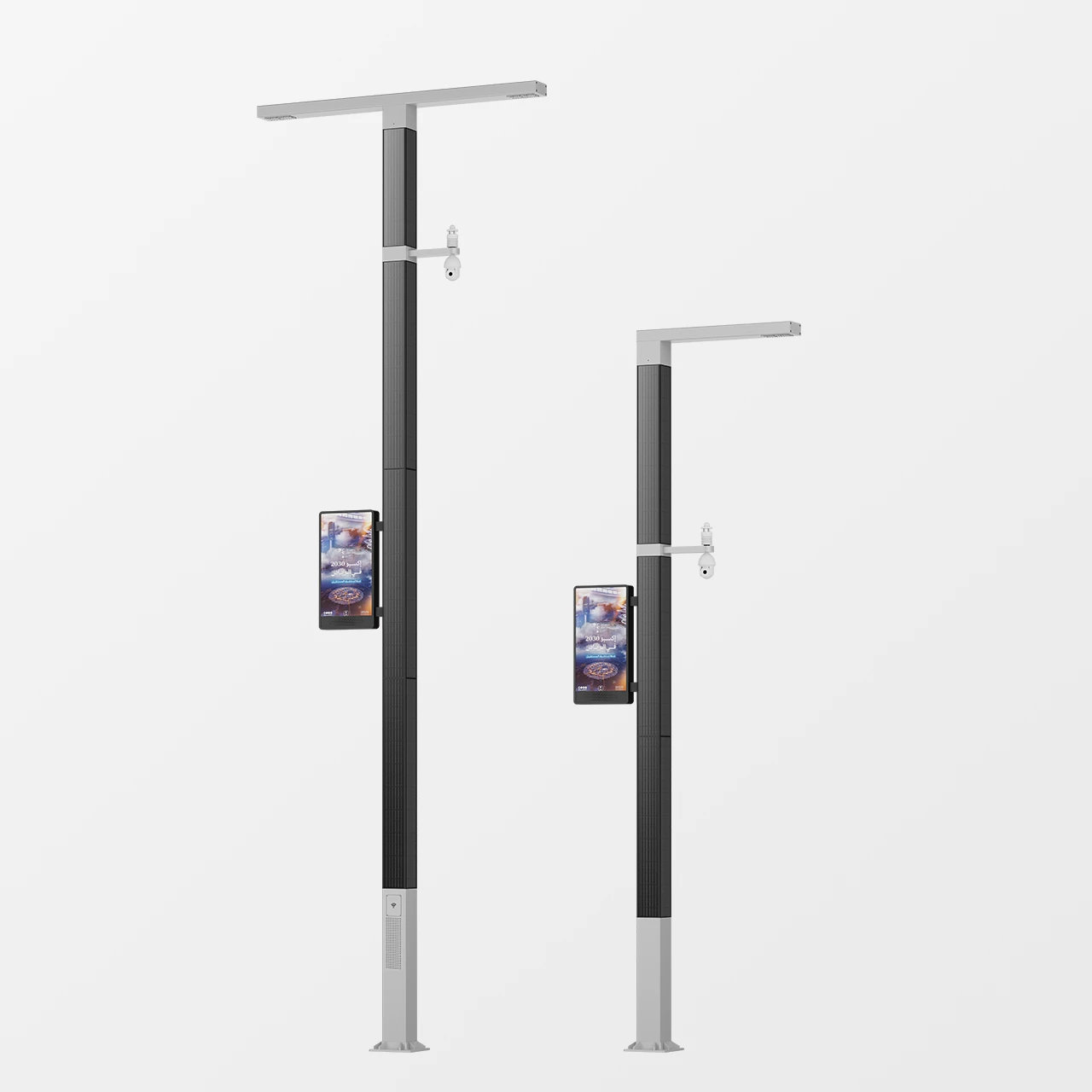

Aesthetics Appearance
The poles adopted vertical PV cylinder blend into environments perfectly without disturbing the beauty of the view.

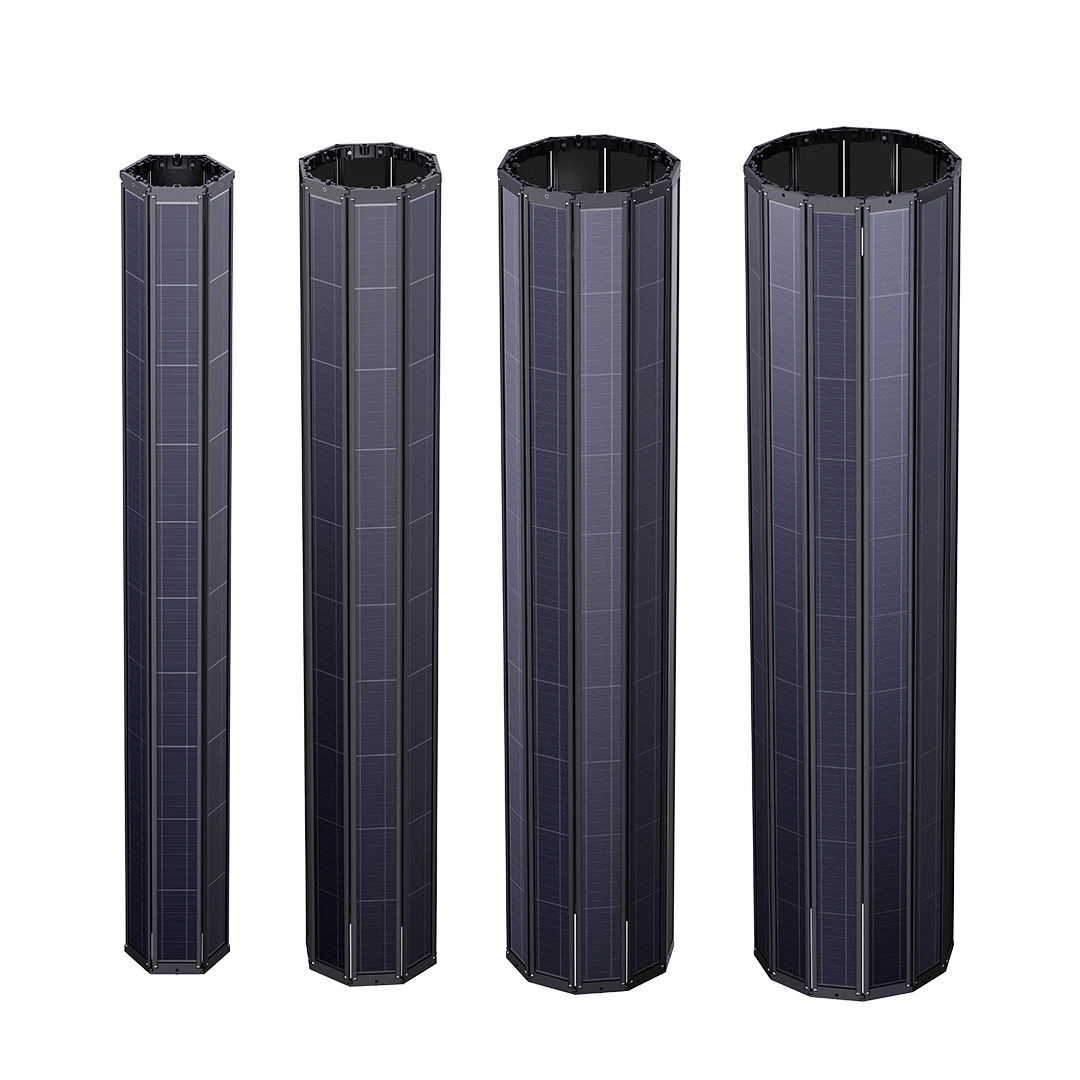

Main Specification

Model number
HEXA-15018
OCTA-20018
OCTA-25018
DODE-30018
Power.max
150 Watts
200 Watts
250 Watts
300 Watts
Vmp
18V/36V
Imp
8.3A
11.1A
13.9A
16.7A
Dimension
1560*250*196mm
1560*290*270mm
1560*360*340mm
1560*425*410mm
Max Pole Diameter
140mm
190mm
260mm
330mm
Profile Material
Glass + Aluminium
Cable & Connector
2.5mm Universal MC4
Solar Cell Efficiency
23.2%
Solar Cell Type
MONO
Working Temp.
-40°C ~ 85°C
Warranty
5 years
N.W / G.W
12.80/14.50 kg
16.80/18.50 kg
20.40/23.60 kg
25.30/28.50 kg
Certificates
CE, IP66

Main Specification

Model number
Power.max
Vmp
Imp
Dimension
Max Pole Diameter
Profile Material
Cable & Connector
Solar Cell Efficiency
Solar Cell Type
Working Temp.
Warranty
N.W / G.W
Certificates
HEXA-15018
OCTA-20018
OCTA-25018
DODE-30018
150 Watts
200 Watts
250 Watts
300 Watts
18V/36V
8.3A
11.1A
13.9A
16.7A
1560*250*196mm
1560*290*270mm
1560*360*340mm
1560*425*410mm
140mm
190mm
260mm
330mm
Glass + Aluminium
2.5mm Universal MC4
23.2%
MONO
-40°C ~ 85°C
5 years
12.80/14.50 kg
16.80/18.50 kg
20.40/23.60 kg
25.30/28.50 kg
CE, IP66

Download

Data Sheet
User Manual
Certificate

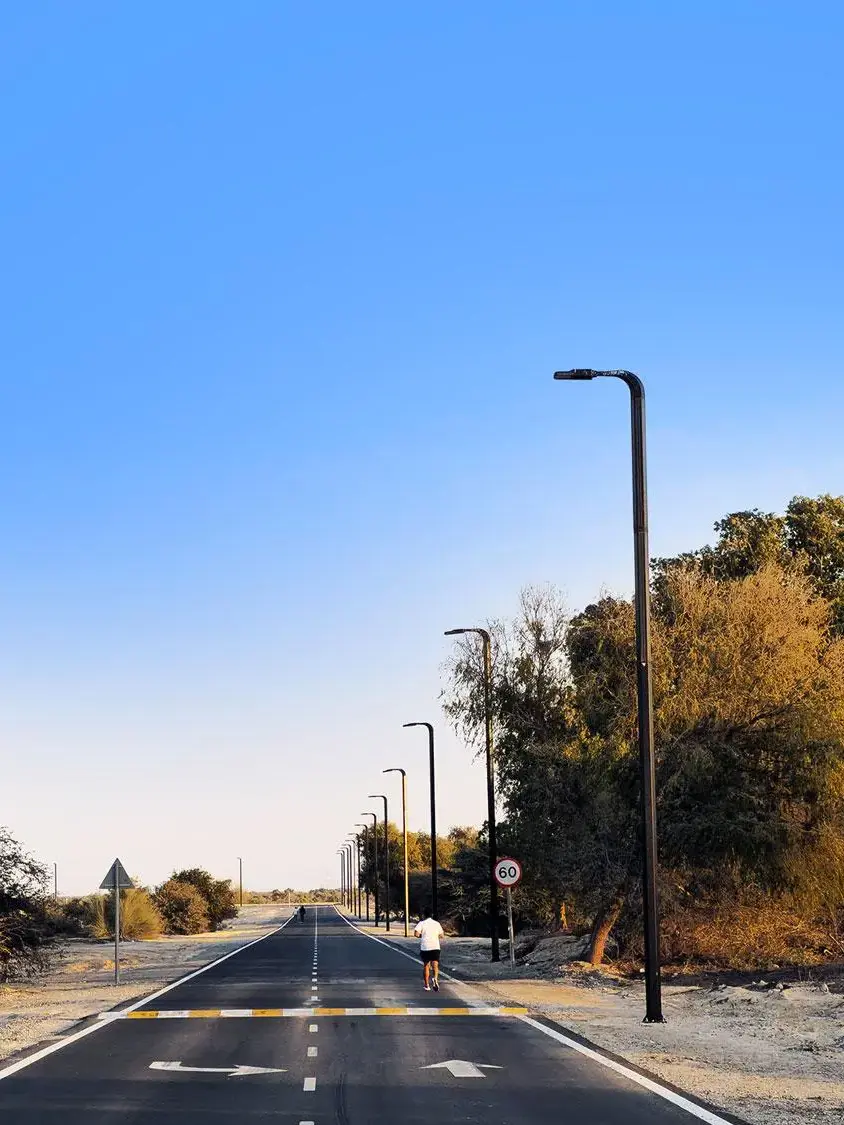

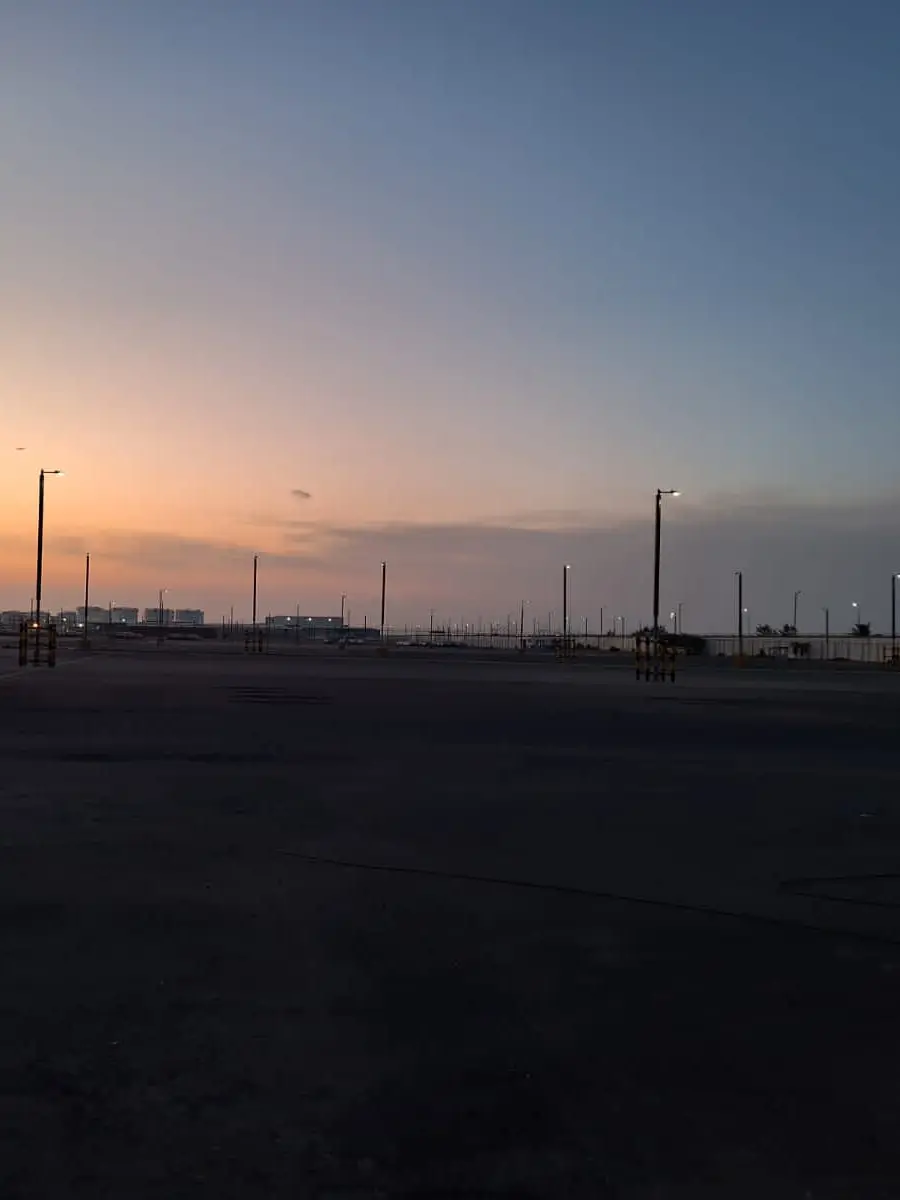

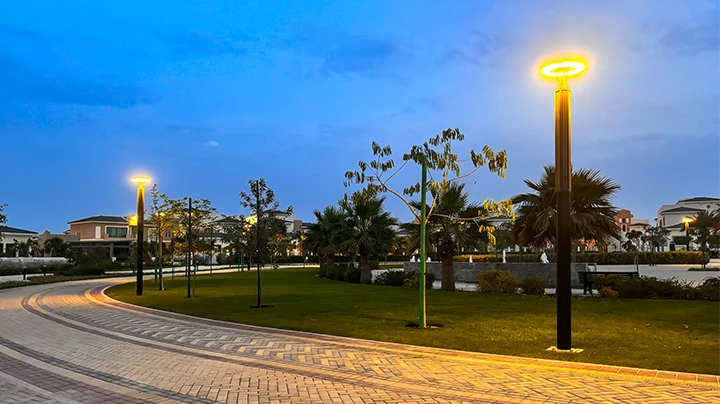

Projects Cases

Projects Cases

You May Ask

1.
What's the advantages of vertical solar cylinder?
Auroras's vertical solar module can avoid dust/snow accumulation, anti-wind resistant, and significantly lowers manpower in maintenance as well as aesthetical appearance.
2.
Can I just buy the vertical solar module individually without battery or controller?
Yes, Our solution is very flexible. You can buy the whole system or just the vertical solar model. If you purchase it separately, Please confirm the right voltage you need for your system.
3.
What is the diameter of the pole suitable for the hexagon vertical solar module?
75mm-120mm, the size is adjustable by the screws of mounting brackets.
4.
What is the screw's regular size in the module bracket?
The standard is M8*60mm.But we can provide longer or shorter screw according to the pole diameter.
5.
How are two vertical solar modules connected?
Between the two modules,we will provide the 30mm MC4 cable adapter. two modules are connected in parallel.
6.
Is there a hole on in the pole for the solar panel cable?
Yes, The external cable of solar panel need to go inside of pole from this hole and connect to controller & battery.
7.
Can i use 36V solar panel to charge 12V battery?
Yes. but you need to use MPPT solar charger instead of PWM solar charge controller.
8.
Can you provide the special drawing of pole to match your vertical solar module?
Yes, please contact our sales team.
9.
We need to install the solar cylinder near the sea side, will the product get rust?
We are able to make the powder coating in anti-corrosion.
10.
Can i arrange the pole from local market?
Yes, You can,  but please confirm the drawing of pole before you arrange it, so the sizes can match to each other.
