SKYBEAM | Architectural Solar Lighting Pole

SKYBEAM | Architectural Integration | Intelligent Lighting

Model

SK-4202L

SK-4802L

LED Power

40W

60W

Luminous Flux

3,600LM * 2PCS

5,400LM * 2PCS

Solar Panel

280Wp+55Wp 36V

4400Wp+55Wp 36V

LiFePO4 Battery

12.8V 768WH

12.8V 845WH

SKYBEAM brings solar technology into the architecture of the lighting pole itself. Its vertically integrated solar modules preserve a clean, disciplined silhouette, creating a refined lighting structure for contemporary streetscapes, public spaces and premium infrastructure.

Designed around performance, precision and visual restraint, SKYBEAM integrates professional LED optics, intelligent energy management and durable outdoor construction within a unified structural language. The result is a solar lighting system that feels less like added equipment and more like part of the built environment.

Remote lighting control and smart system functions extend its capability for projects requiring flexible operation, centralized management and long-term efficiency, while maintaining the architectural clarity that defines the SKYBEAM series.

Key Components & Advantages

MPPT Charge Controller

maximizes energy efficiency ensuring longer battery life and consistent illumination without blackout。

Programmable by Remote

The lighting program can be modified anytime by remote control according to customers' requirement.

IP65 Waterproof

IP65 rating provides superior protection against dust and water, ensuring reliable performance in various outdoor conditions.

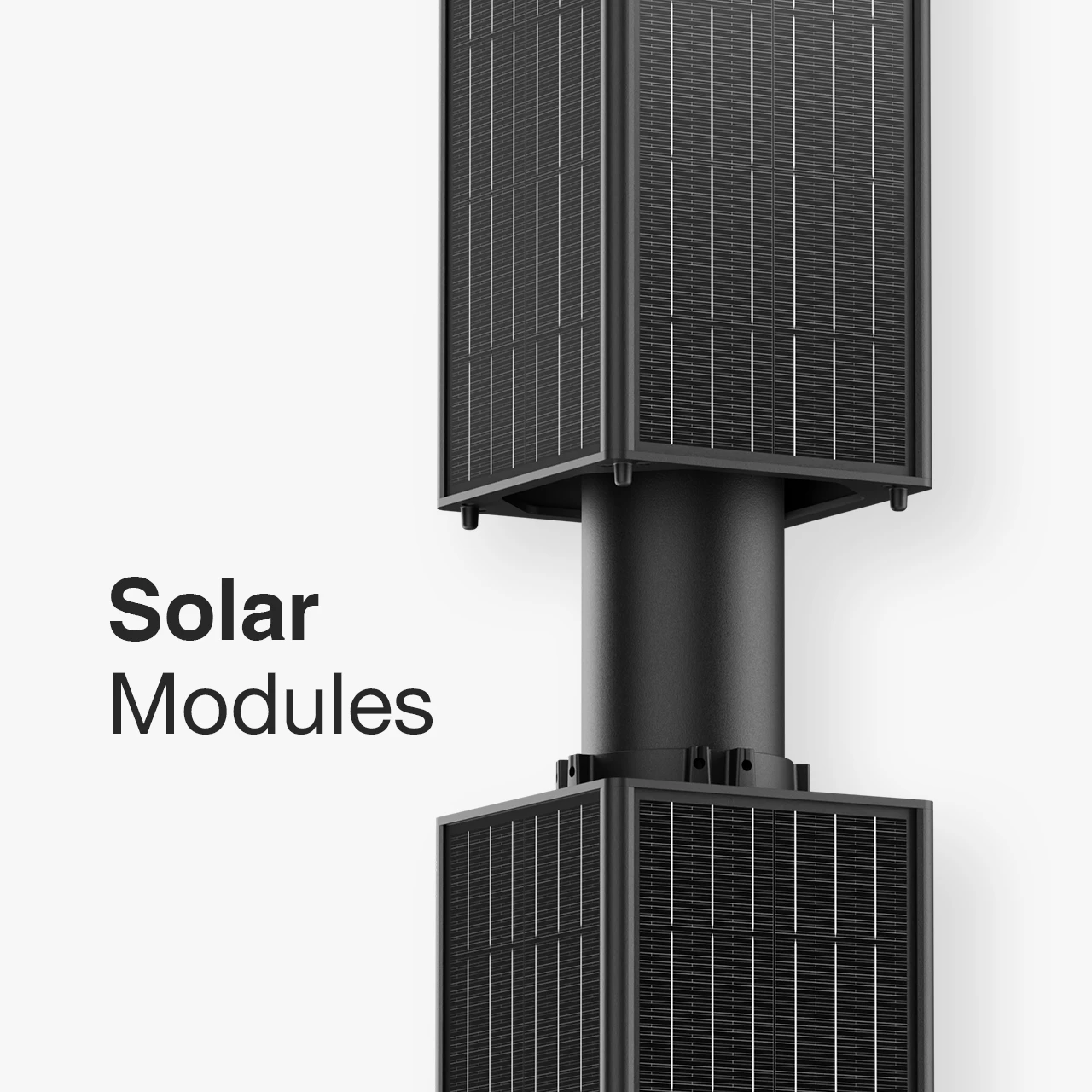

Vertical Solar Panels

Capture sunlight from multiple angles for improved energy generation.

High Brightness LED

200lm/W high-efficiency LED delivers powerful illumination with low energy consumption.

Long-Life LiFePO4 Battery

4,000 cycles at 80% D.O.D provide reliable energy storage for long-term operation.

Main Specification

Model Name

SK-4202L

SK-4802L

SK-5802L

Peak LED Powe

40W

60W

80W

Luminous Flux

3,600LM * 2PCS

5,400LM * 2PCS

7,200LM * 2PCS

CCT Range

2200K~6500K

●

Beam Angle

LEDil Optics

●

Solar Panel

280Wp+55Wp 36V

440Wp+55W 36V

440Wp+ 55Wp 36V

Battery Capacity

12.8V 768Wh

12.8V 845Wh

25.6V 921Wh

Autonomy

3~5 days

●

Solar Controller

High Efficiency 97% MPPT

●

Motion Sensor

Microwave

●

Wireless Control

Optional

●

Hybrid Version

Optional

●

Dimension

220*220*4200mm

220*220*4800mm

220*220*5800mm

Pole Color

Black/Grey/Oak/Walnut/Pine

●

Pole Material

Aluminum Alloy

●

Certificates

CE, ROHS, CB

●

Warranty

5 Years

●

Main Specification

Model Name

Peak LED Powe

Luminous Flux

CCT Range

Beam Angle

Solar Panel

Battery Capacity

Autonomy

Solar Controller

Motion Sensor

Wireless Control

Hybrid Version

Dimension

Pole Color

Pole Material

Certificates

Warranty

SK-4202L

SK-4802L

SK-5802L

40W

60W

80W

3,600LM * 2PCS

5,400LM * 2PCS

7,200LM * 2PCS

2200K~6500K

●

LEDil Optics

●

280Wp+55Wp 36V

440Wp+55W 36V

440Wp+ 55Wp 36V

12.8V 768Wh

12.8V 845Wh

25.6V 921Wh

3~5 days

●

High Efficiency 97% MPPT

●

Microwave

●

Optional

●

Optional

●

220*220*4200mm

220*220*4800mm

220*220*5800mm

Black/Grey/Oak/Walnut/Pine

●

Aluminum Alloy

●

CE, ROHS, CB

●

5 Years

●

Download

Data Sheet

User Manual

Certificate

Datasheet of SKYBEAM

*.pdf

Download

User Manual of SKYBEAM

*.pdf

Download

Certificates of SkyBeam

*.rar

Download

You May Ask

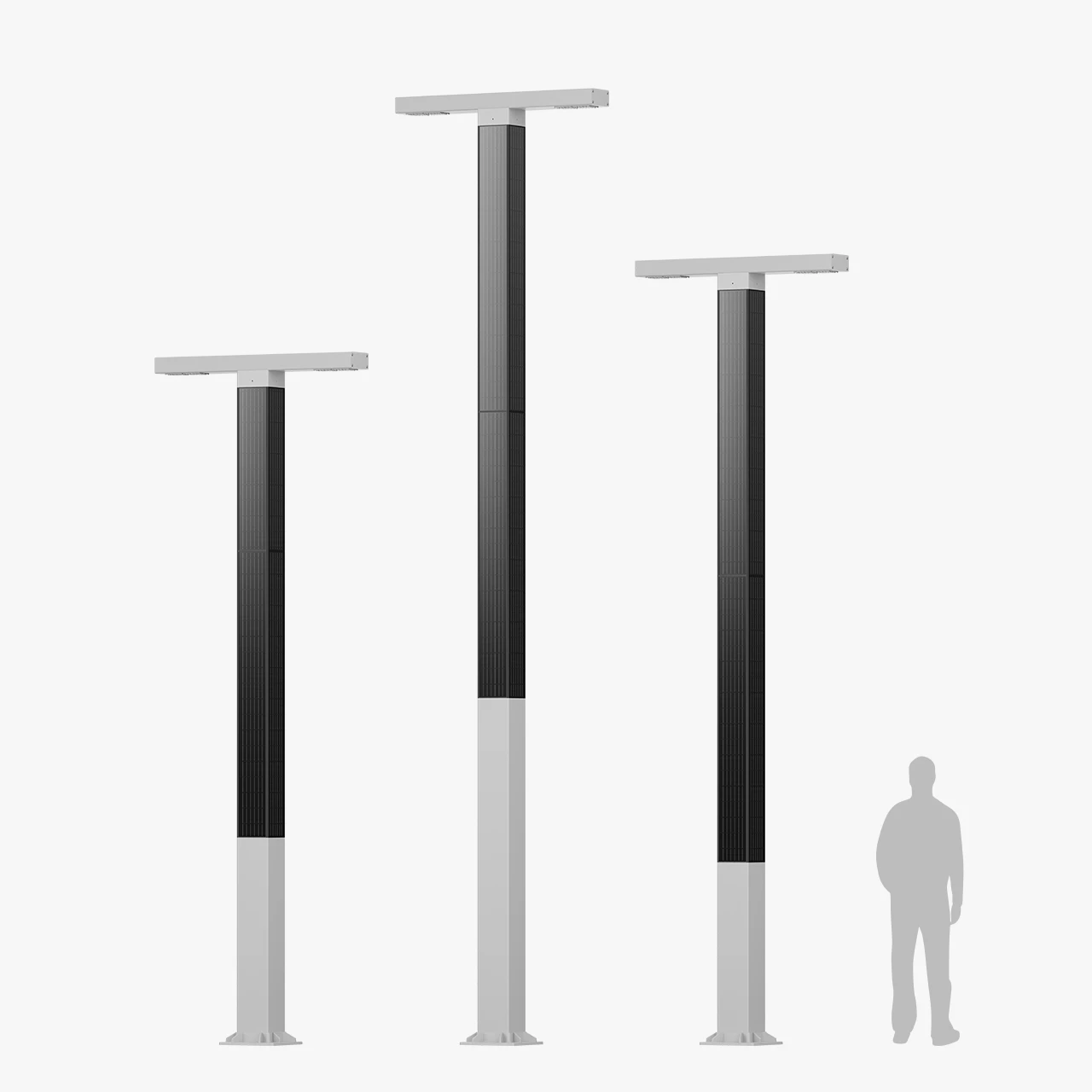

Can you change the height of the pole?

Yes, the height of the SkyBeam solar lighting column can be modified according to your requirements. For example, our standard height is 3200mm, then we can have 3300mm, 3400mm etc any heights as you wish.

What is the max height of this SkyBeam solar pole light?

The regular height of SkyBeam is 6M max due to the features of aluminum alloy. so we can use aluminum alloy to produce this solar pole light for all the heights less than 6 meters, for more than 6 meters height, the pole material will be steel instead of aluminum alloy, and height could be up to 10 meters even 12 meters as required.

Can you lift up the light head a bit? i don't like the horizontal design.

Yes, We can modify the design as you require. No problem.

Can i engrave my LOGO on this SkyBeam light pole?

Yes, Sure, We can use laser machine to engrave your logo on the light, And it is free of charge completely.

Can i increase or descrease the numbers of vertical PV module?

Yes, We can use the suitable size of PV module according to the height of pole. And the cost of the pole will be different.

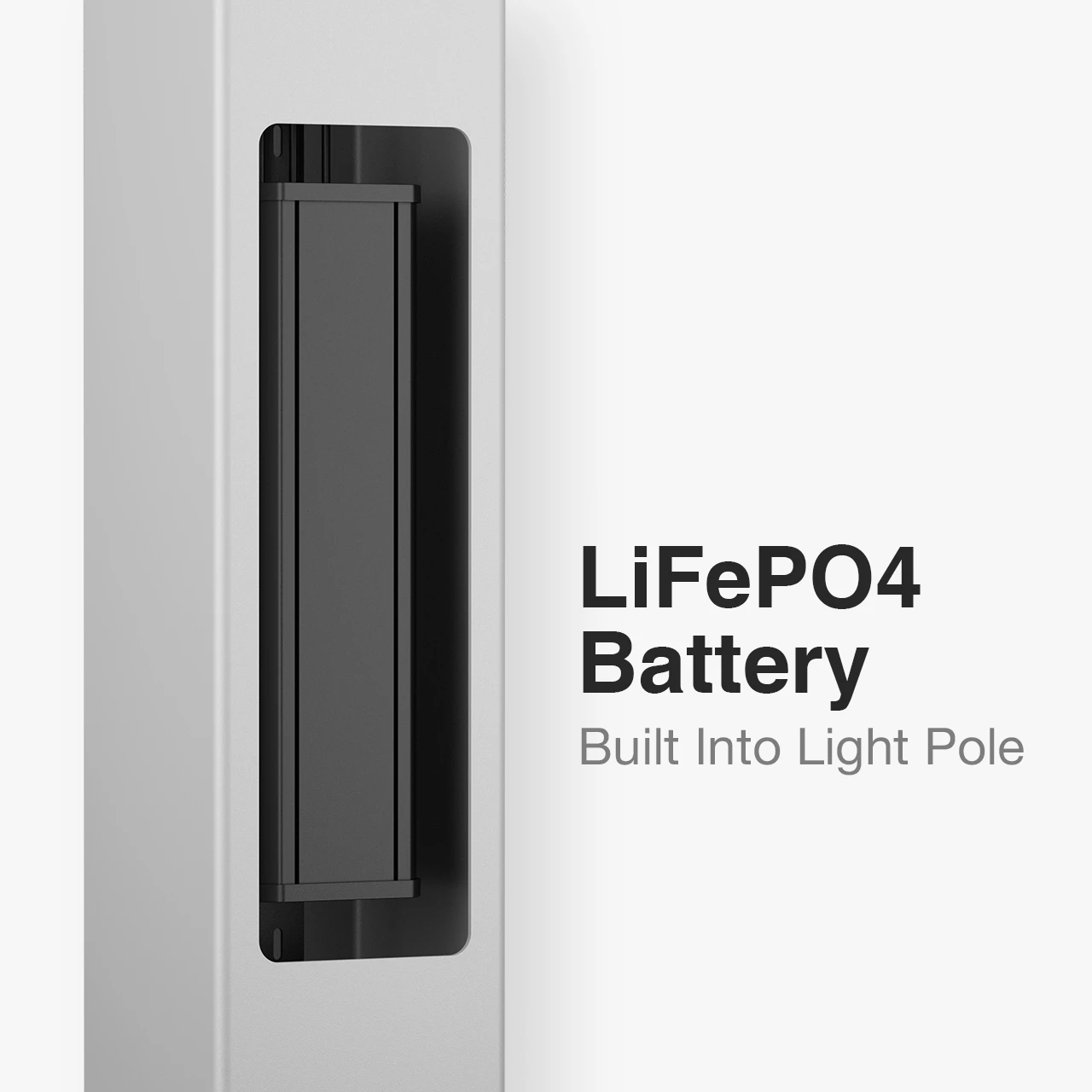

Where is the lithium battery build?

The battery is built inside of the pole at the bottom part for easy accessing for maintenance or replacement. We can can put the battery into the light arm as long as the battery size is suitable.

Is there a motion sensor in the pole? And where it is?

Yes, The motion senor is available and it is equipped in the light head, It can be PIR motion sensor and also can be microwave sensor.

Can you use a lithium battery with much bigger capacity?

Yes, in the default configuration of the solar lighting pole, The battery capacity is based on our recommendation. We can use bigger lithium battery for more days automony as you require.

Can i use steel pole instead of aluminum alloy for cheaper price?

Yes, the price of using steel pole is much cheaper than using aluminum pole, while the steel pole will be much heavier and not so smooth finishing than aluminum pole.

10.

What LED optics do you use? Do you have IES?

The best led optics from LEDil are equipped as the standard optic for SkyBeam Vertical Solar Pole Light. There are more than 20 pcs of optics with different lighting performance to satisy any lighting requirement for your projects.
