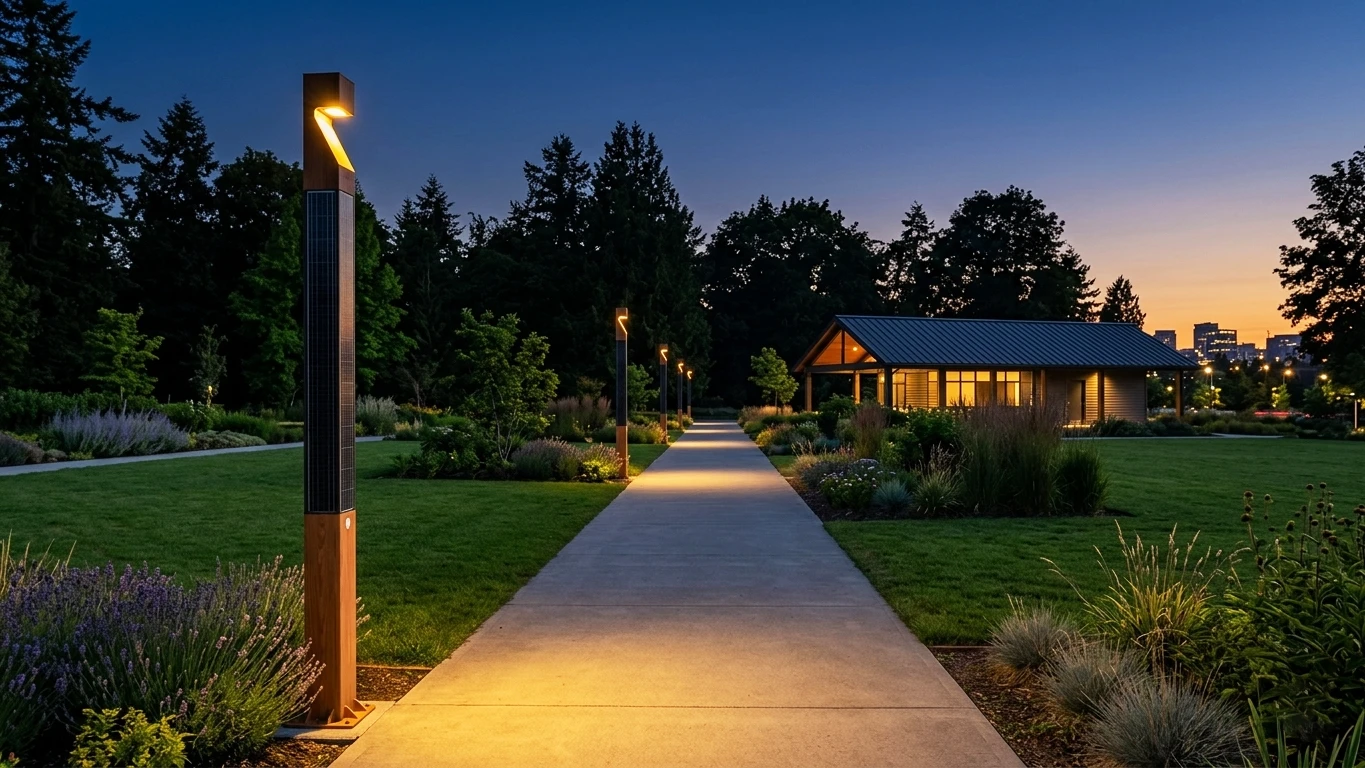

Outdoor Garden Solar Lighting Pole

Model Number

SP-280

SP-360

LED Power

20W

30W

Luminous Flux

4,180lm

6,180lm

Solar Panel

18V 140W

18V 200W

LiFePO4 Battery

12.8V 24AH

12.8V 36AH

Key Componente & Advantages

Programmable by Remote

The lighting program can be modified anytime by remote control according to customers' requirement.

IP65 Waterproof

IP65 rating provides superior protection against dust and water, ensuring reliable performance in various outdoor conditions.

High Efficiency LED

High-brightness LED chips provide superior illumination, enhancing visibility and energy efficiency.

Long LifeTime Battery

Quality lithium battery Long-lasting reduce maintenance costs and increase system reliability.

Motion Sensor

PIR or microwave sensor could be enabled to save more energy and extend the lifetime and more days autonomy.

360° Full Day Charging

Half area of round solar tube is facing to sun all the time to ensure continous charging all day long, generating more power.

Main Specification

Product Name

SP-280B

SP-360B

SP-420B

LED Power

20W

30W

40W

Luminous Flux

4,180lm

6,180lm

8,280lm

CCT Range

2200K~6500K

●

Solar Panel

140Wp

200Wp

260Wp

Battery Capacity

12.8V 24AH

12.8V 36AH

12.8V 48AH

Autonomy

3~5 days

●

Solar Controller

MPPT

●

Motion Sensor

Microwave

●

Wireless Control

Optional

●

Hybrid Version

Optional

●

Pole Height

2800mm

3600mm

4200mm

Dimension

188*188*2800mm

188*188*3600mm

188*188*4200mm

Pole Color

Black/Oak/Walnut/Pine

●

Pole Material

Aluminium Alloy

●

Certificates

CE, ROHS, CB

●

Warranty

5 Years

●

Main Specification

Product Name

LED Power

Luminous Flux

CCT Range

Solar Panel

Battery Capacity

Autonomy

Solar Controller

Motion Sensor

Wireless Control

Hybrid Version

Pole Height

Dimension

Pole Color

Pole Material

Certificates

Warranty

SP-280B

SP-360B

SP-420B

20W

30W

40W

4,180lm

6,180lm

8,280lm

2200K~6500K

●

140Wp

200Wp

260Wp

12.8V 24AH

12.8V 36AH

12.8V 48AH

3~5 days

●

MPPT

●

Microwave

●

Optional

●

Optional

●

2800mm

3600mm

4200mm

188*188*2800mm

188*188*3600mm

188*188*4200mm

Black/Oak/Walnut/Pine

●

Aluminium Alloy

●

CE, ROHS, CB

●

5 Years

●

Download

Data Sheet

User Manual

Certificate

You May Ask

Can you change the height of the pole?

Yes, the height of the SkyBeam solar lighting column can be modified according to your requirements. For example, our standard height is 3200mm, then we can have 3300mm, 3400mm etc any heights as you wish.

What is the max height of this SkyBeam solar pole light?

The regular height of SkyBeam is 6M max due to the features of aluminum alloy. so we can use aluminum alloy to produce this solar pole light for all the heights less than 6 meters, for more than 6 meters height, the pole material will be steel instead of aluminum alloy, and height could be up to 10 meters even 12 meters as required.

Can you lift up the light head a bit? i don't like the horizontal design.

Yes, We can modify the design as you require. No problem.

Can i engrave my LOGO on this SkyBeam light pole?

Yes, Sure, We can use laser machine to engrave your logo on the light, And it is free of charge completely.

Can i increase or descrease the numbers of vertical PV module?

Yes, We can use the suitable size of PV module according to the height of pole. And the cost of the pole will be different.

Where is the lithium battery build?

The battery is built inside of the pole at the bottom part for easy accessing for maintenance or replacement. We can can put the battery into the light arm as long as the battery size is suitable.

Is there a motion sensor in the pole? And where it is?

Yes, The motion senor is available and it is equipped in the light head, It can be PIR motion sensor and also can be microwave sensor.

Can you use a lithium battery with much bigger capacity?

Yes, in the default configuration of the solar lighting pole, The battery capacity is based on our recommendation. We can use bigger lithium battery for more days automony as you require.

Can i use steel pole instead of aluminum alloy for cheaper price?

Yes, the price of using steel pole is much cheaper than using aluminum pole, while the steel pole will be much heavier and not so smooth finishing than aluminum pole.

10.

What LED optics do you use? Do you have IES?

The best led optics from LEDil are equipped as the standard optic for SkyBeam Vertical Solar Pole Light. There are more than 20 pcs of optics with different lighting performance to satisy any lighting requirement for your projects.
